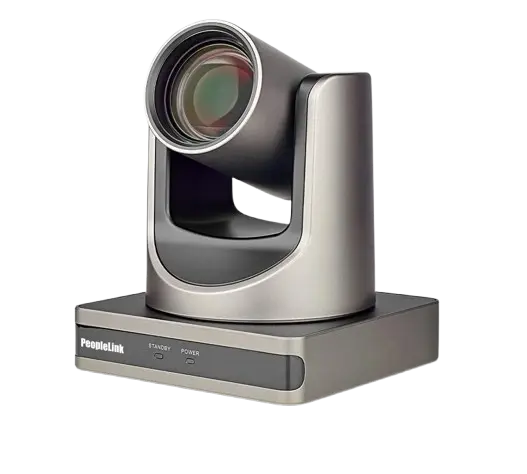

Elite FHD Pro Series 12X/Gen2.1

The PeopleLink Elite FHD Pro Series 12X Gen2.1 is a professional PTZ video conferencing camera built for demanding meeting, education, and collaboration environments. Its 1/2.8-inch CMOS sensor with 2.07MP effective pixels supports Full HD video up to 1920 × 1080 at 60fps, providing smooth and detailed video for meetings, presentations, lectures, and training sessions.

The camera combines a 12X optical zoom with 16X digital zoom, allowing users to capture both wide room views and detailed close-ups. Its 72.5° horizontal field of view provides broad coverage, while the PTZ mechanism supports ±170° pan and -30° to +90° tilt for flexible camera positioning.

A key feature of the Gen2.1 model is its AI Presenter Tracking with ReID technology. The camera can identify the presenter based on visual characteristics and automatically track their movement within the room, helping keep the speaker properly framed during presentations and training sessions.

The Elite FHD Pro 12X Gen2.1 also supports 2D and 3D digital noise reduction, backlight compensation, image freeze, and image flipping. Up to 255 preset positions can be configured, making it easy to recall frequently used camera angles.

For professional AV and IP workflows, the camera supports simultaneous video output through HDMI, USB 3.0, and network interfaces. Network protocols include NDI® HX2, RTSP, RTMP(S), ONVIF, SRT, TCP/IP, HTTP, DHCP, and Multicast, enabling integration with conferencing, streaming, and broadcast systems.

The camera supports H.264 AVC and H.264 SVC encoding, with dual-streaming capability. USB connectivity is provided through USB 3.0 Type-C, while HDMI 1.4b provides direct HD video output. The network interface supports 10/100/1000M Ethernet, and IEEE 802.3af PoE allows power and network connectivity over a compatible Ethernet connection.

With support for RS232, optional RS485, network control, and UVC PTZ control, the PeopleLink Elite FHD Pro Series 12X Gen2.1 offers flexible installation and control options for professional conferencing and AV environments.

Specifications

Specifications are based primarily on the official PeopleLink Gen2.1 datasheet.

Suitable For

• Corporate Conference Rooms
• Executive Meetings
• Boardrooms
• Classrooms
• Training Rooms
• Remote Education
• Hybrid Meetings
• Video Conferencing
• Professional Presentations
• Live Streaming
• IP Video Production
• Remote Collaboration
