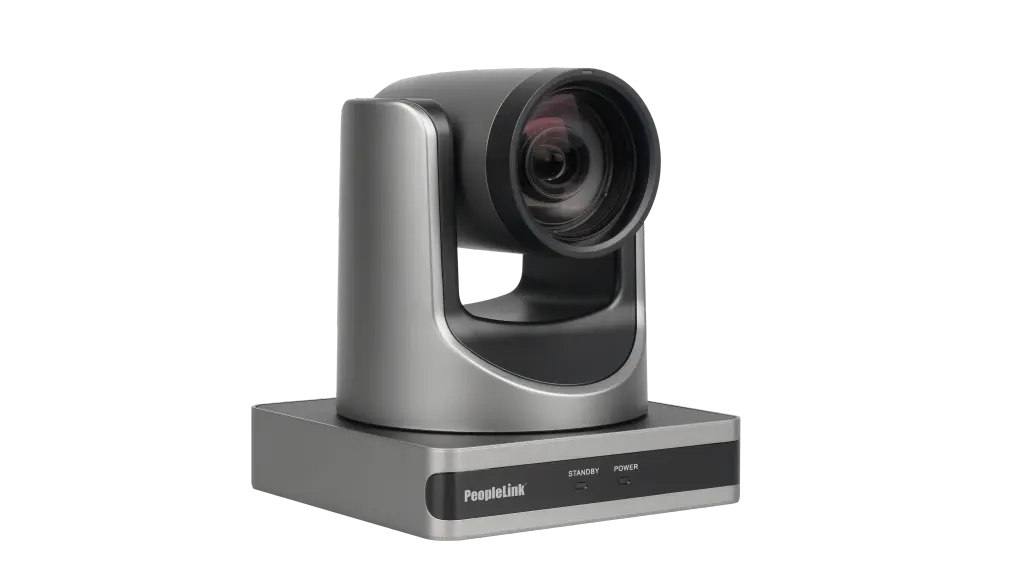

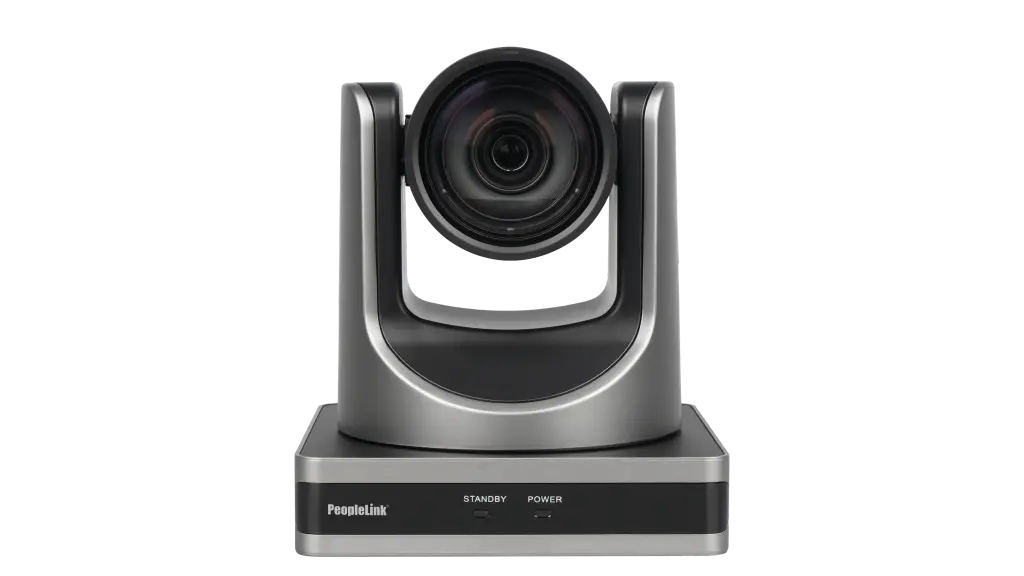

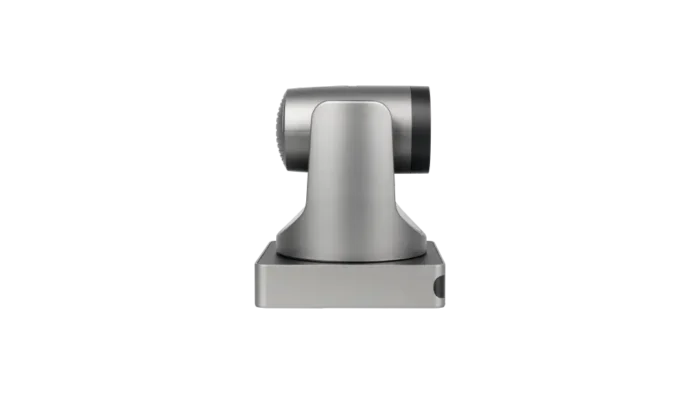

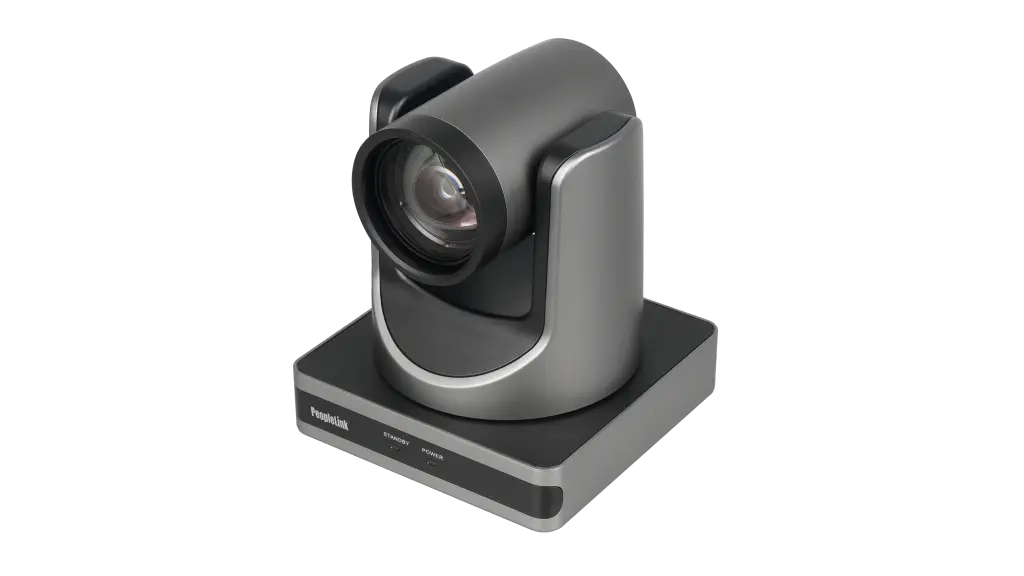

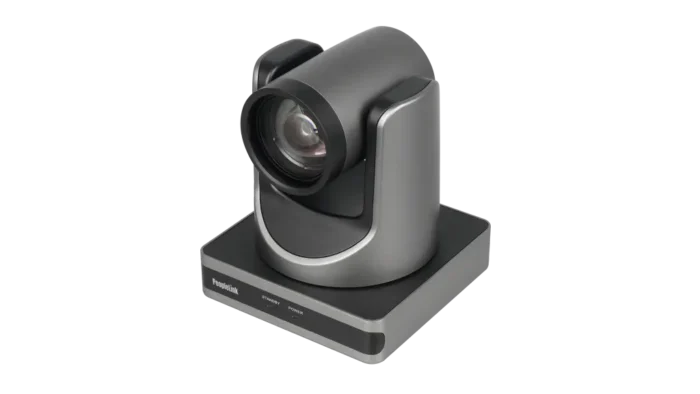

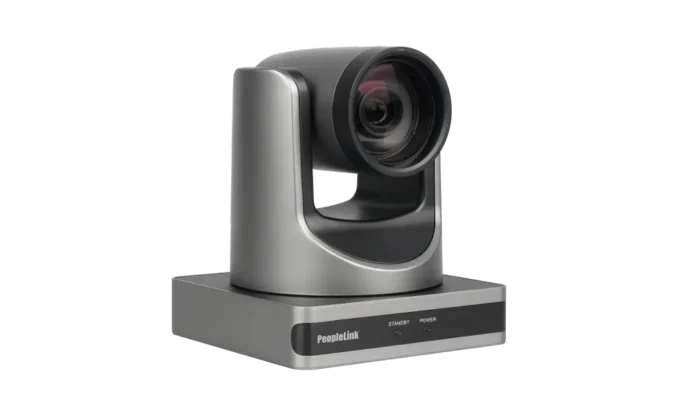

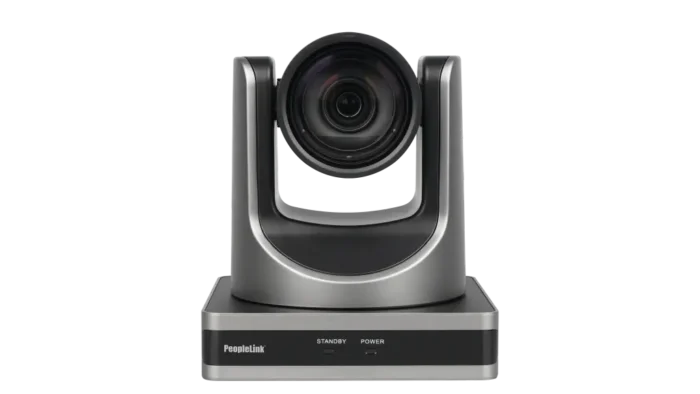

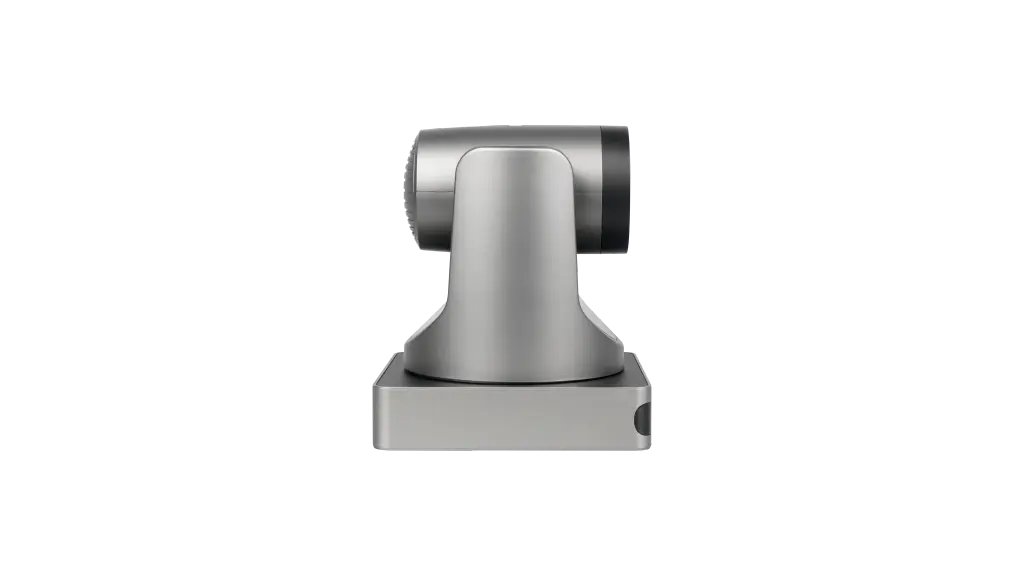

PeopleLink Elite 4K Premium 12X PTZ Camera

The PeopleLink Elite 4K Premium 12X PTZ Camera is designed for professional environments where high-resolution video, flexible camera control, and network integration are important. Its 1/2.5-inch CMOS sensor with 8.51 effective megapixels supports up to 4K UHD 3840 × 2160 resolution at 30fps, delivering detailed and clear video for conferencing, presentations, teaching, and streaming.

The camera features a 12X optical zoom lens with a focal length of 4.4mm to 52.8mm, complemented by 16X digital zoom. This combination allows users to capture both wide room views and detailed close-ups of speakers, presenters, or other subjects.

With a 78° diagonal field of view, the Elite 4K Premium 12X provides broad coverage while maintaining flexible framing. Its PTZ mechanism supports ±170° pan and -30° to +90° tilt, while 255 preset positions make it easy to save and recall frequently used camera angles.

For network-based video applications, the camera supports H.264 and MJPEG compression and a comprehensive range of protocols, including NDI® HX2, RTSP, RTMP(S), ONVIF, SRT, TCP/IP, and HTTP. It also supports two network video streams, making it suitable for professional streaming and AV-over-IP deployments.

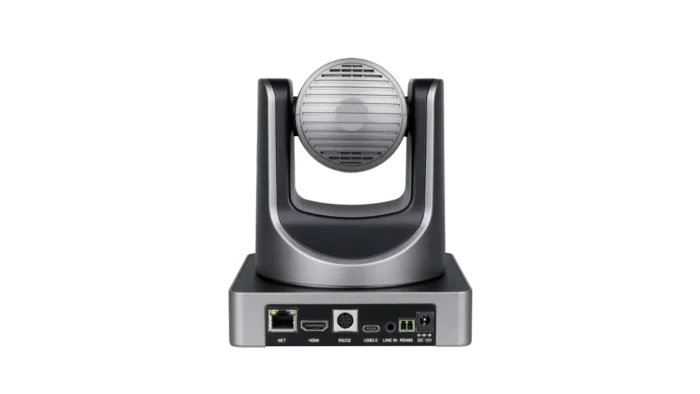

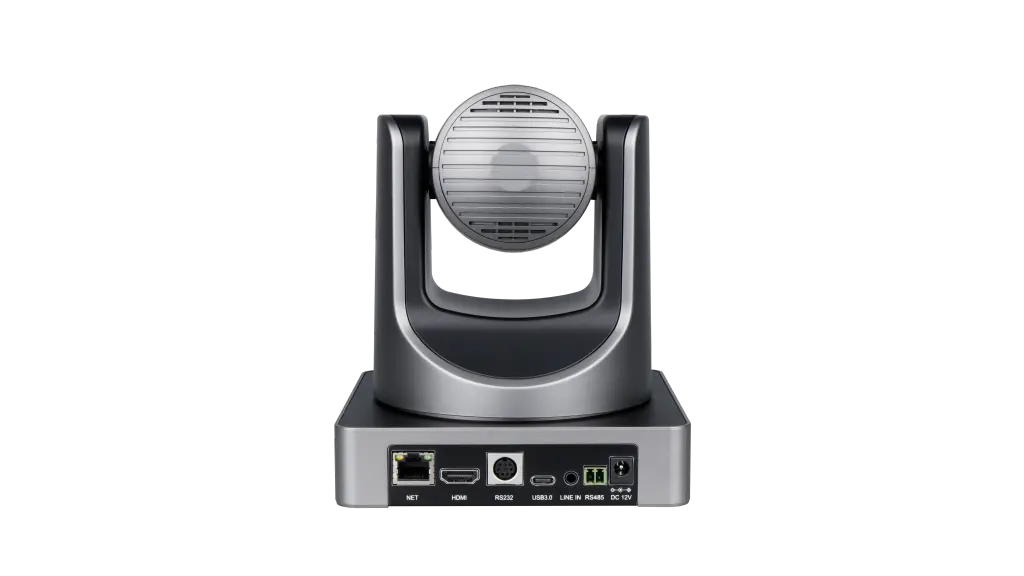

Connectivity includes USB 3.0 Type-C, HDMI 1.4b, Gigabit Ethernet, and a 3.5mm line-in audio interface. The camera supports PoE (802.3af) for convenient network-based installation. RS232 and optional RS485 interfaces provide compatibility with VISCA, Pelco-D, and Pelco-P control systems.

The PeopleLink Elite 4K Premium 12X is an ideal solution for large conference rooms, lecture halls, educational institutions, corporate AV environments, live streaming, broadcasting, and professional video production.

Specifications

Specifications are based on PeopleLink’s official Elite 4K Premium Series 12X datasheets.

Suitable For

• Corporate Conference Rooms
• Boardrooms
• Lecture Halls
• Educational Institutions
• Video Conferencing
• Professional Presentations
• Live Streaming
• Broadcasting
• Training Rooms
• Professional AV Systems
• Remote Collaboration
