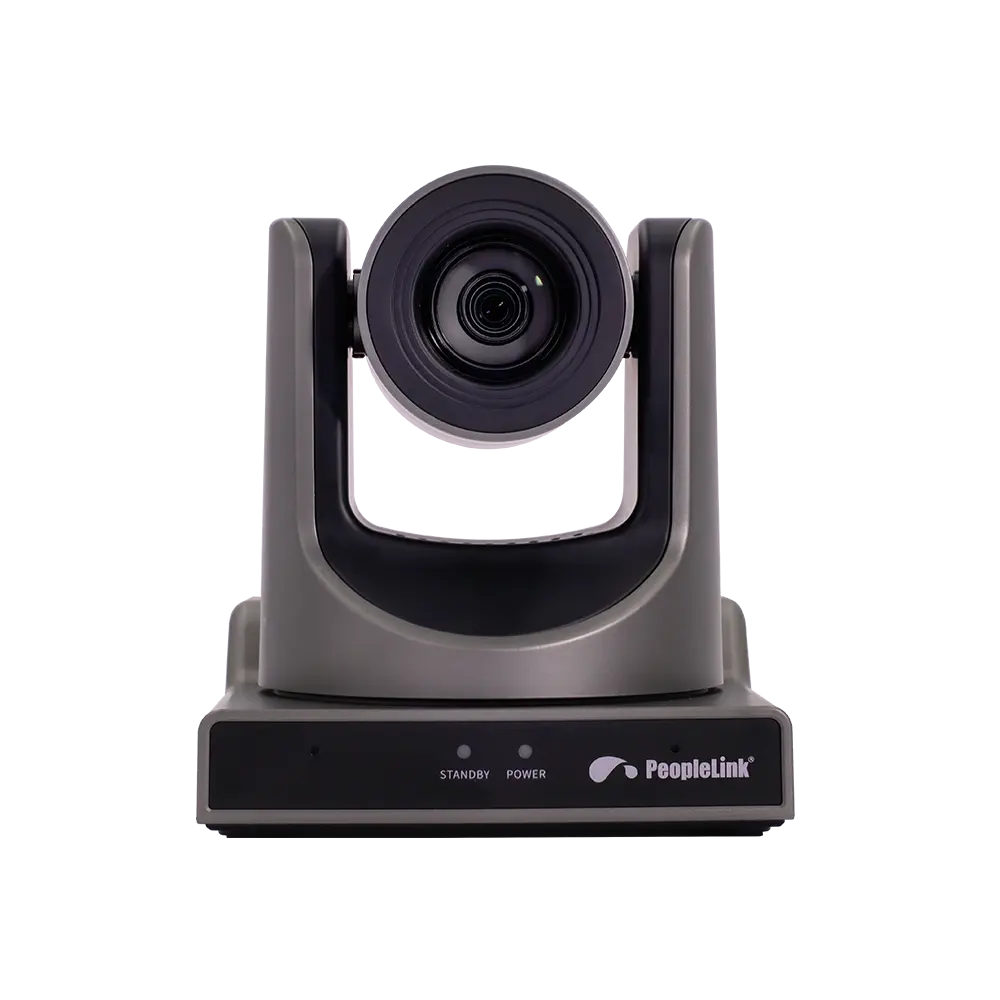

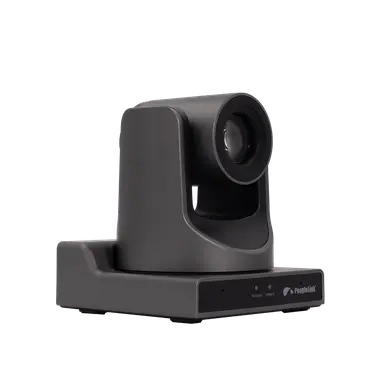

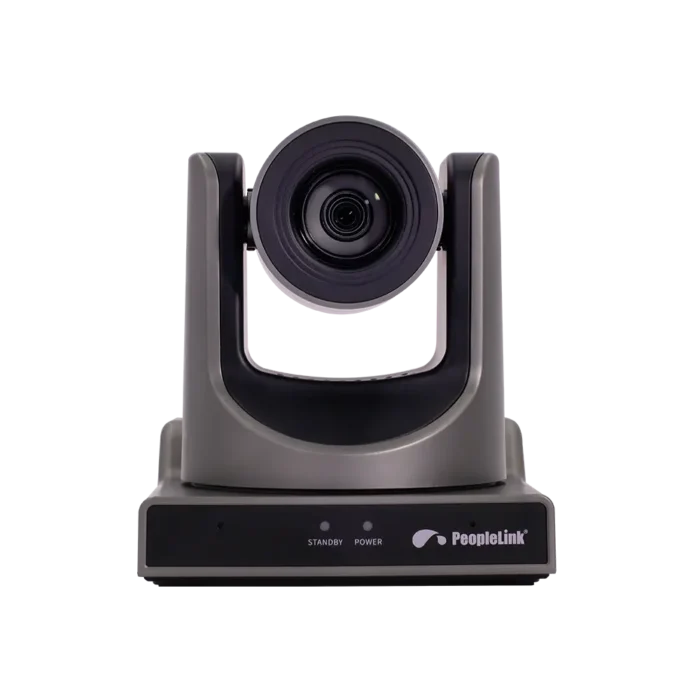

PeopleLink Elite XL Series 30X Camera

The PeopleLink Elite XL Series 30X Camera is a professional PTZ camera designed for environments that require high-quality Full HD video, powerful zoom and flexible camera control. Its 1/2.8-inch CMOS sensor with 2.07MP effective pixels supports video resolutions up to 1920 × 1080 at 60fps, providing smooth and detailed video for meetings, lectures, presentations, live broadcasts and recordings.

The camera’s 30X optical zoom is ideal for large conference rooms, auditoriums and classrooms where speakers may be positioned at a considerable distance from the camera. The 8X digital zoom provides additional framing flexibility. Its 60.7° horizontal field of view allows the camera to capture a wide area when required.

The built-in electromechanical PTZ head supports ±170° horizontal rotation and -30° to +90° vertical movement. With pan speeds up to 100°/s and tilt speeds up to 69.9°/s, the camera can quickly move between different subjects or preset positions. Up to 255 presets can be stored for convenient operation.

For intelligent video capture, the Elite XL Series 30X incorporates AI and pedestrian-recognition technology. It can identify people using visual characteristics such as clothing, body shape, hairstyle and facial information, enabling automatic target tracking and framing.

The camera also uses 2D and 3D digital noise reduction to minimise image noise, particularly in low-light conditions. Its advanced ISP processing provides automatic exposure and white-balance functions for consistent image output.

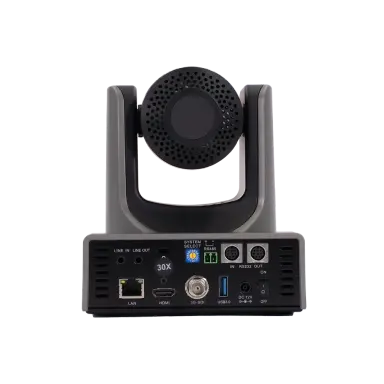

For professional AV integration, the camera provides HDMI 1.3, 3G-SDI, USB 3.0 Type-A and network video output. It supports H.265, H.264 and MJPEG compression, while network protocols include TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast and SRT. Full NDI and NDI® HX2 are available as optional features.

The camera includes RS232, RS485, Ethernet and USB control options, with support for VISCA, Pelco-D and Pelco-P protocols. It also supports PoE, built-in dual microphones, USB audio and 3.5mm audio input/output, making it suitable for integrated conferencing and AV installations.

Specifications

Specifications are based on PeopleLink’s official Elite XL Series 30X datasheet. 

Suitable For

• Large Conference Rooms
• Boardrooms
• Classrooms
• Lecture Halls
• Auditoriums
• Video Conferencing
• Distance Education
• Live Broadcasting
• Recording & Streaming
• Training Rooms
• Professional AV Installations
• Corporate Presentations
• Houses of Worship
