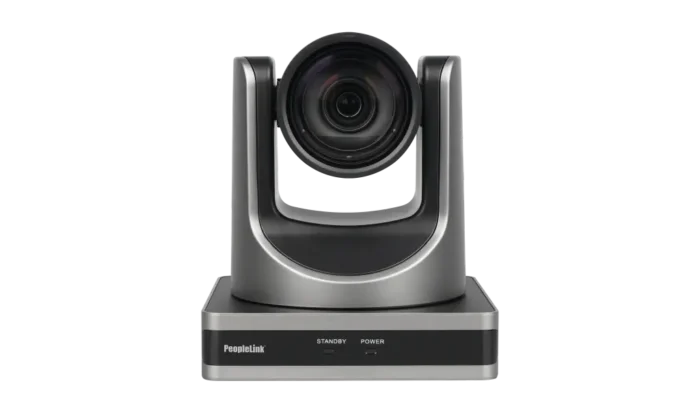

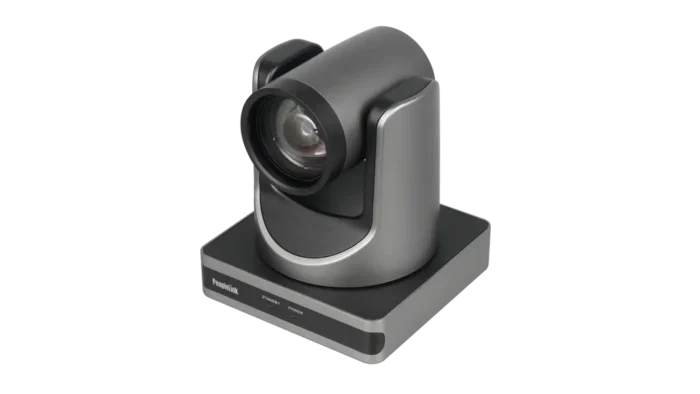

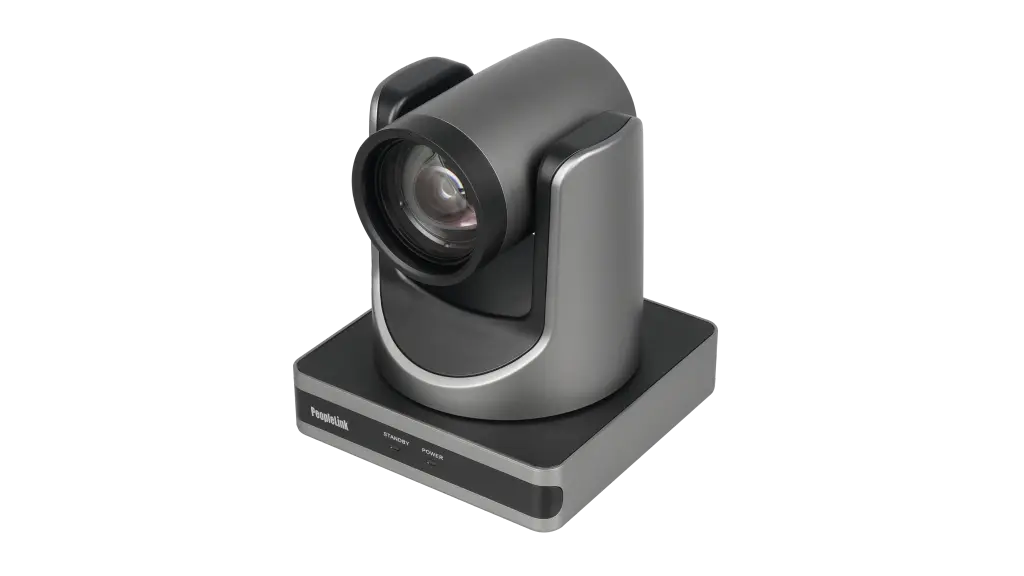

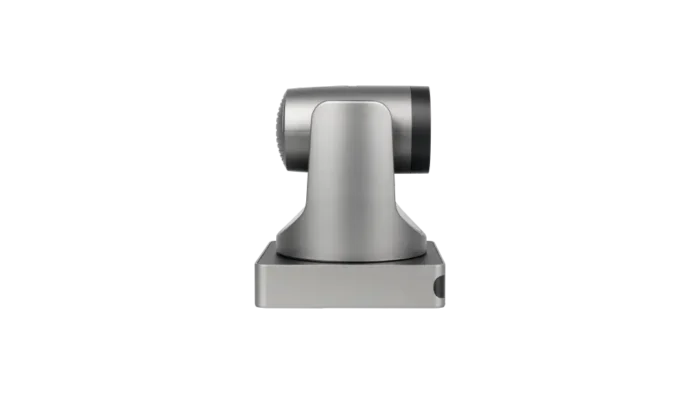

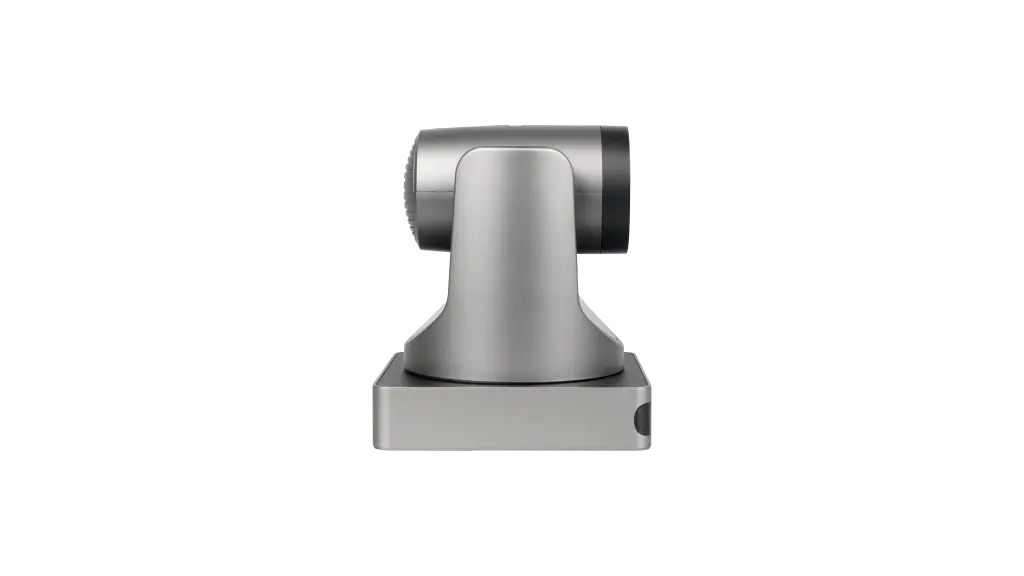

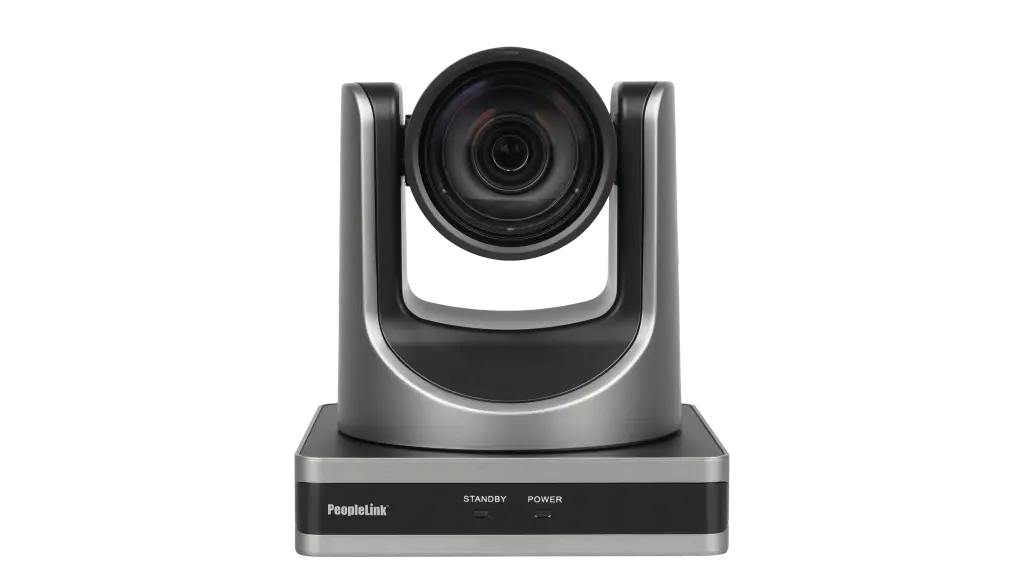

PeopleLink Elite 4K Premium 20X PTZ Camera

The PeopleLink Elite 4K Premium 20X PTZ Camera is designed for professional environments that require high-resolution video and powerful zoom capabilities. Its 1/2.8-inch CMOS sensor with 8.42MP effective pixels supports up to 4K UHD 3840 × 2160 resolution at 30fps, providing detailed video for conferencing, presentations, lectures, live events and streaming.

Its 20X optical zoom is particularly suited to larger meeting spaces, auditoriums and classrooms where presenters or speakers may be positioned farther from the camera. The camera also provides 16X digital zoom, giving users additional framing flexibility when capturing distant subjects.

The camera’s PTZ mechanism provides ±170° pan and -30° to +90° tilt, allowing operators to cover a wide area and position the camera precisely. Up to 255 preset positions can be stored, making it easy to recall frequently used views.

For improved image quality, the Elite 4K Premium 20X supports 2D and 3D digital noise reduction, backlight compensation and a minimum illumination of 0.5 Lux at F1.8 with AGC enabled. These features help maintain consistent video quality across different lighting conditions.

The camera is also designed for professional IP video workflows. It supports NDI® HX2, RTSP, RTMP(S), ONVIF, SRT, TCP/IP, HTTP, DHCP, GB/T 28181 and Multicast. Its dual-stream capability allows separate video streams to be configured for different applications such as conferencing, monitoring, recording or live streaming.

For physical connectivity, the camera includes USB 3.0 Type-C, HDMI 1.4b, Gigabit Ethernet and a 3.5mm audio line input. It also supports IEEE 802.3af PoE, allowing compatible installations to carry network connectivity and power through Ethernet.

With its powerful zoom, 4K video, network streaming capabilities and professional PTZ control, the PeopleLink Elite 4K Premium 20X is suitable for conference rooms, boardrooms, auditoriums, classrooms, training rooms, live streaming and professional AV installations.

Specifications

Specifications are based on the official PeopleLink Elite 4K Premium Series 20X datasheet.

Suitable For

• Large Conference Rooms
• Boardrooms
• Auditoriums
• Classrooms
• Training Rooms
• Video Conferencing
• Professional Presentations
• Live Streaming
• Broadcasting
• IP Video Production
• Remote Collaboration
• Professional AV Installations
