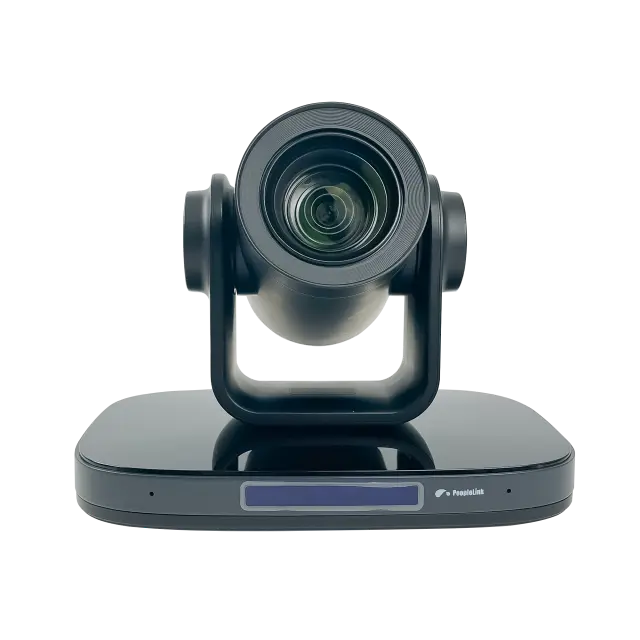

PEOPLELINK WEB CAMERA ELITE 4K PREMIUM 12X

The PeopleLink Elite 4K 12X PTZ Camera is built for professional video conferencing and AV applications where high-resolution imaging, flexible camera control and multiple connectivity options are required.

4K UHD Video

The camera features a 1/2.5-inch CMOS sensor with 8.4MP effective pixels and supports video output up to 3840 × 2160 at 60fps. It also supports a range of lower resolutions and frame rates for compatibility with different conferencing and streaming workflows.

12× Optical & 16× Digital Zoom

The 12× optical zoom lens allows users to capture detailed views of speakers and participants without relying only on digital enlargement. A 16× digital zoom provides additional framing flexibility for larger rooms and distant subjects.

Wide-Angle PTZ Coverage

With a horizontal viewing angle ranging from 80.8° to 7.5°, the camera can provide both wide room views and tighter shots. Its motorised PTZ mechanism supports ±170° horizontal rotation and -30° to +90° vertical movement, making it suitable for different camera positions and room layouts.

Professional Video Outputs

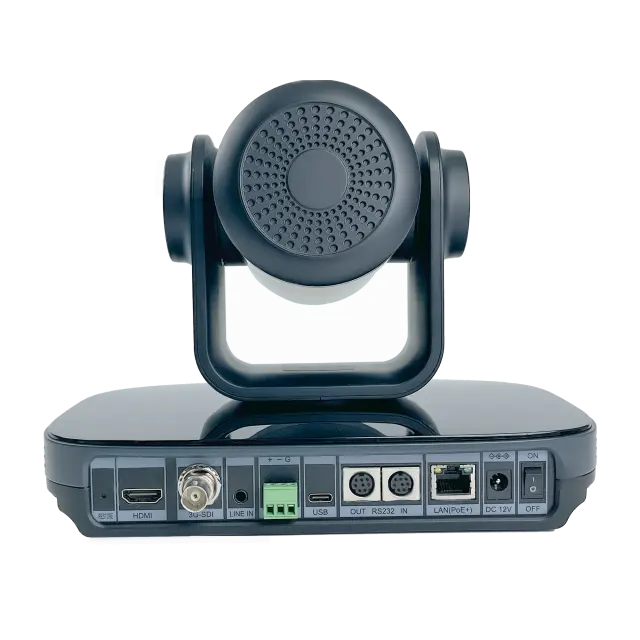

The Elite 4K 12X provides multiple output options, including HDMI 2.0, 3G-SDI and USB 3.0 Type-C. This allows the camera to be integrated into conferencing systems, computers, displays, video production setups and professional AV installations.

IP Streaming & Network Connectivity

The built-in 10/100/1000Mbps Ethernet interface enables network-based video workflows. The camera supports protocols including NDI|HX, TCP/IP, HTTP, RTSP, RTMP and ONVIF, providing flexibility when integrating it into compatible IP-based conferencing and streaming environments.

Preset Positioning & PTZ Control

The camera supports up to 255 preset positions with a stated preset accuracy of 0.1°. It supports VISCA, Pelco-D and Pelco-P control protocols through the available serial interfaces, making it suitable for professional camera-control systems.

Low-Light Performance

The camera has a minimum illumination specification of 0.5 Lux at F1.8 with AGC enabled. It also includes 3D digital noise reduction, helping maintain image quality in varying lighting conditions.

Specifications
