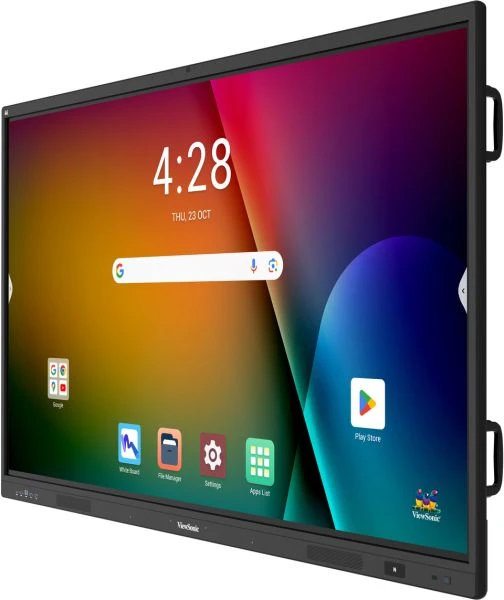

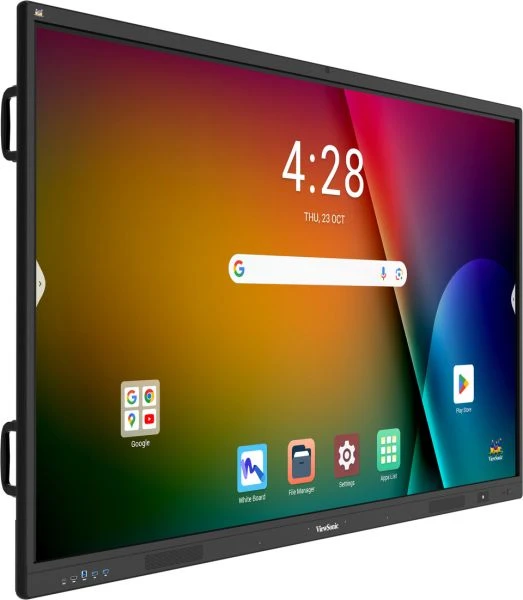

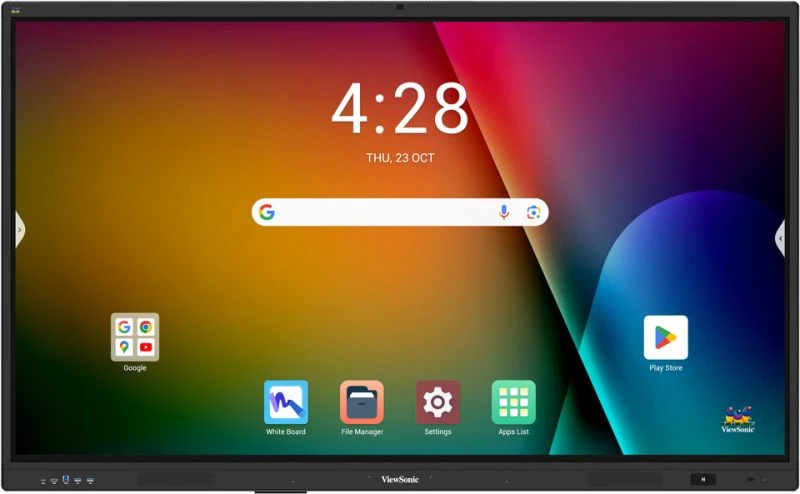

ViewSonic ViewBoard IN7504V-N 4K Interactive Display

The ViewSonic ViewBoard IN7504V-N 75-inch 4K Interactive Display is designed for interactive learning, professional presentations, meetings and collaborative work. Its large 75-inch screen delivers 3840 × 2160 4K UHD resolution, providing detailed visuals across a spacious display area. The HVA panel offers a 5500:1 typical contrast ratio and 178° viewing angles, while the 450-nit brightness and 9H anti-glare surface are designed for use in classrooms and meeting environments.

The display features Ultra Fine Touch Technology with IR recognition, supporting up to 40 simultaneous touch points on both Windows and Android. Palm rejection and high touch resolution help provide a natural writing and annotation experience. The display supports interactive tools such as Text Recognition Pen, Shape Recognition and Magical Pen for writing, editing and creative classroom activities.

For hybrid meetings and collaboration, the IN7504V-N includes a built-in 50MP 4K camera and 8-array microphone. The camera supports features such as auto-framing and face and voice tracking, while the integrated microphone array is designed for voice pickup during meetings. Two built-in 20W speakers provide audio directly from the display.

The ViewBoard runs on Android 14 with Google EDLA certification and can be upgraded to Android 16. EDLA provides access to Google applications and services such as the Google Play Store and Google Workspace. The system is powered by an Octa-Core processor with 8GB RAM and 128GB internal storage, providing an integrated platform for applications, presentations and interactive content.

An integrated NFC reader provides quick access to the launcher and personalized settings, which is useful in shared classrooms and meeting spaces. Multiple users can access their own personalized environment without repeatedly configuring the display.

Connectivity includes 2 × HDMI inputs supporting up to 4K@60Hz, 1 × HDMI output, 3 × USB-A, 2 × USB-B touch ports and 2 × USB-C ports. The display also includes Gigabit RJ45 LAN, RS232, a TF card slot, audio connections and optical SPDIF output. An optional Intel Standard OPS slot is available for compatible PC modules.

Highlights / Key Features

• 75-inch 4K UHD interactive display
• 3840 × 2160 UHD resolution
• HVA panel with DLED backlight
• 450 nits typical brightness
• 5500:1 typical contrast ratio
• 6.5ms response time
• 178° horizontal and vertical viewing angles
• 1.07 billion colors
• 9H anti-glare surface
• Zero Bonding technology
• Ultra Fine Touch Technology with IR recognition
• Up to 40 touch points on Windows and Android
• Palm rejection support
• 32768 × 32768 touch resolution
• Built-in 50MP 4K camera
• Auto-framing, face and voice tracking
• Built-in 8-array microphone
• Dual 20W speakers
• Google EDLA certified
• Android 14 platform, upgradeable to Android 16
• Google Play Store and Google Workspace access
• Octa-Core processor
• 8GB RAM and 128GB storage
• Built-in Wi-Fi
• NFC reader for quick access and personalized settings
• AI-powered learning and collaboration tools
• Text Recognition Pen with translation and text-to-speech functions
• Magical Pen for AI-assisted image generation
• Shape Recognition for converting hand-drawn shapes into polished visuals
• 2 × HDMI inputs supporting up to 4K@60Hz
• 1 × HDMI output
• 2 × USB-C ports
• 3 × USB-A ports
• 2 × USB-B touch ports
• Gigabit RJ45 LAN
• RS232 connectivity
• TF/MicroSD card slot
• Optical SPDIF output
• 600 × 400mm VESA wall-mount support
