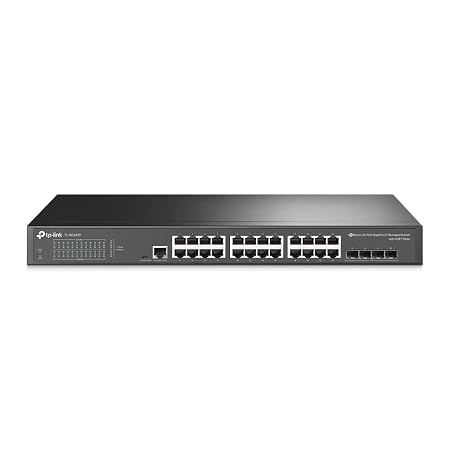

TP-LINK MANAGED SWITCH TL-SG3428 24 PORT (TL-SG3428)

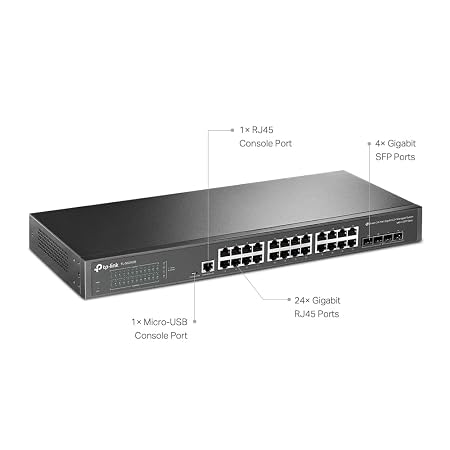

The TP-Link TL-SG3428 JetStream 24-Port Gigabit L2+ Managed Switch provides high-speed and flexible connectivity for business, enterprise and professional networking environments. It combines 24 × 10/100/1000Mbps Gigabit Ethernet ports with 4 Gigabit SFP slots, allowing both copper devices and fiber-based uplinks to be connected within the same network infrastructure.

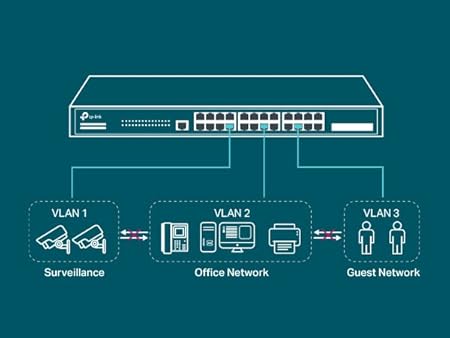

With a 56Gbps switching capacity and 41.66 Mpps forwarding rate, the TL-SG3428 is designed to handle high-volume network traffic efficiently. Its L2+ capabilities include static routing, VLAN, link aggregation, spanning tree protocols and advanced QoS, making it suitable for structured and scalable network deployments.

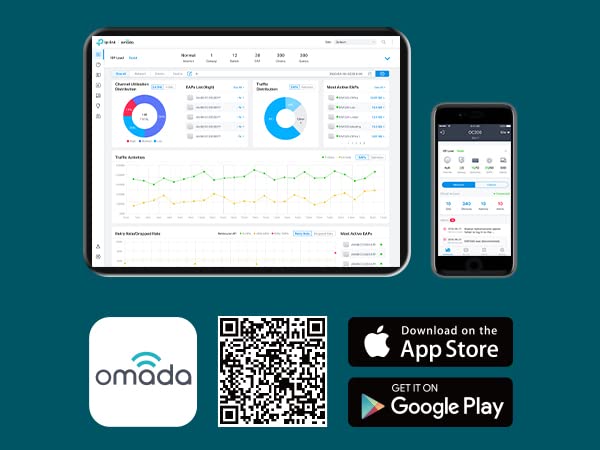

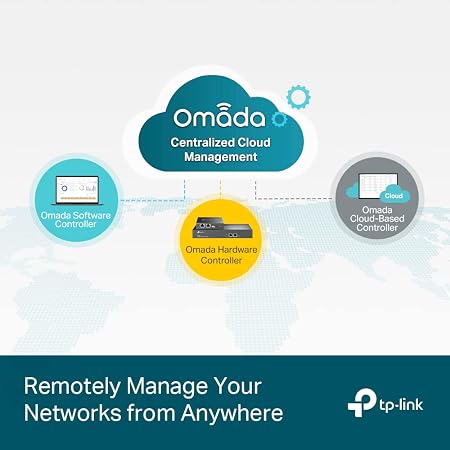

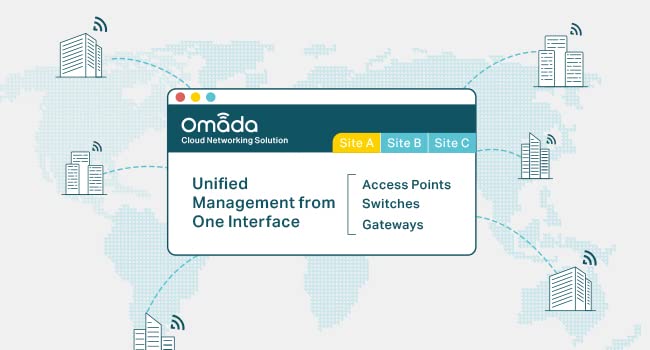

The switch integrates with the TP-Link Omada SDN platform, providing centralized management, monitoring and configuration through compatible Omada controllers. Supported hardware versions also provide cloud access and Zero-Touch Provisioning for simplified deployment.

For network security, the TL-SG3428 supports features such as ACL, IP-MAC-Port binding, port security, DHCP Snooping, storm control, DoS defense and 802.1X authentication. RADIUS and TACACS+ support provides additional authentication and access-control options for managed business networks.

The switch also supports IGMP Snooping, MLD Snooping and multicast management, making it suitable for voice, video and other multicast-based applications. Its fanless design helps provide quiet operation, while the rack-mountable form factor makes it suitable for network racks and structured installations.

Specifications

Specifications can vary by hardware revision; TP-Link lists different MAC-table and power figures for V1 versus V2 and newer revisions.

Suitable Applications

• Enterprise LAN networks
• Office and corporate networking
• Small and medium businesses
• Server room and network rack installations
• Fiber-connected LAN infrastructure
• Managed VLAN networks
• IP surveillance network infrastructure
• VoIP and video networking
• Multi-switch network deployments
• Omada SDN-managed networks
