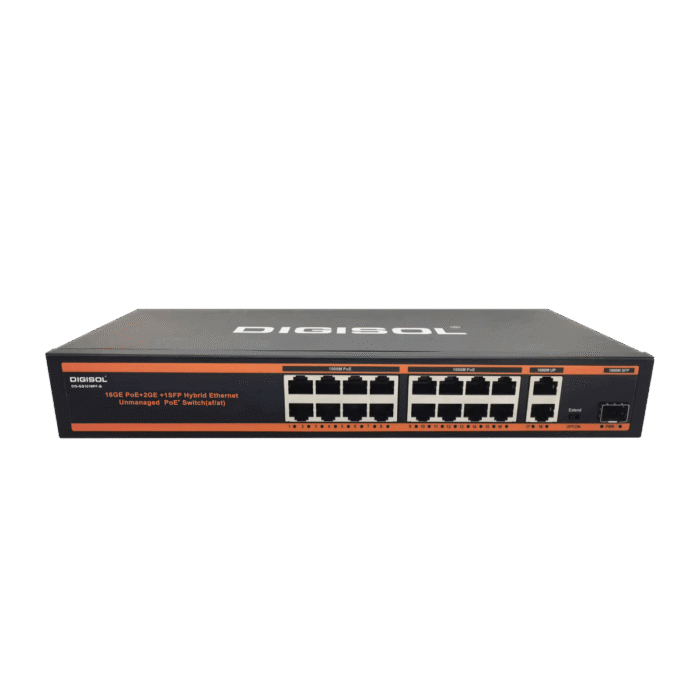

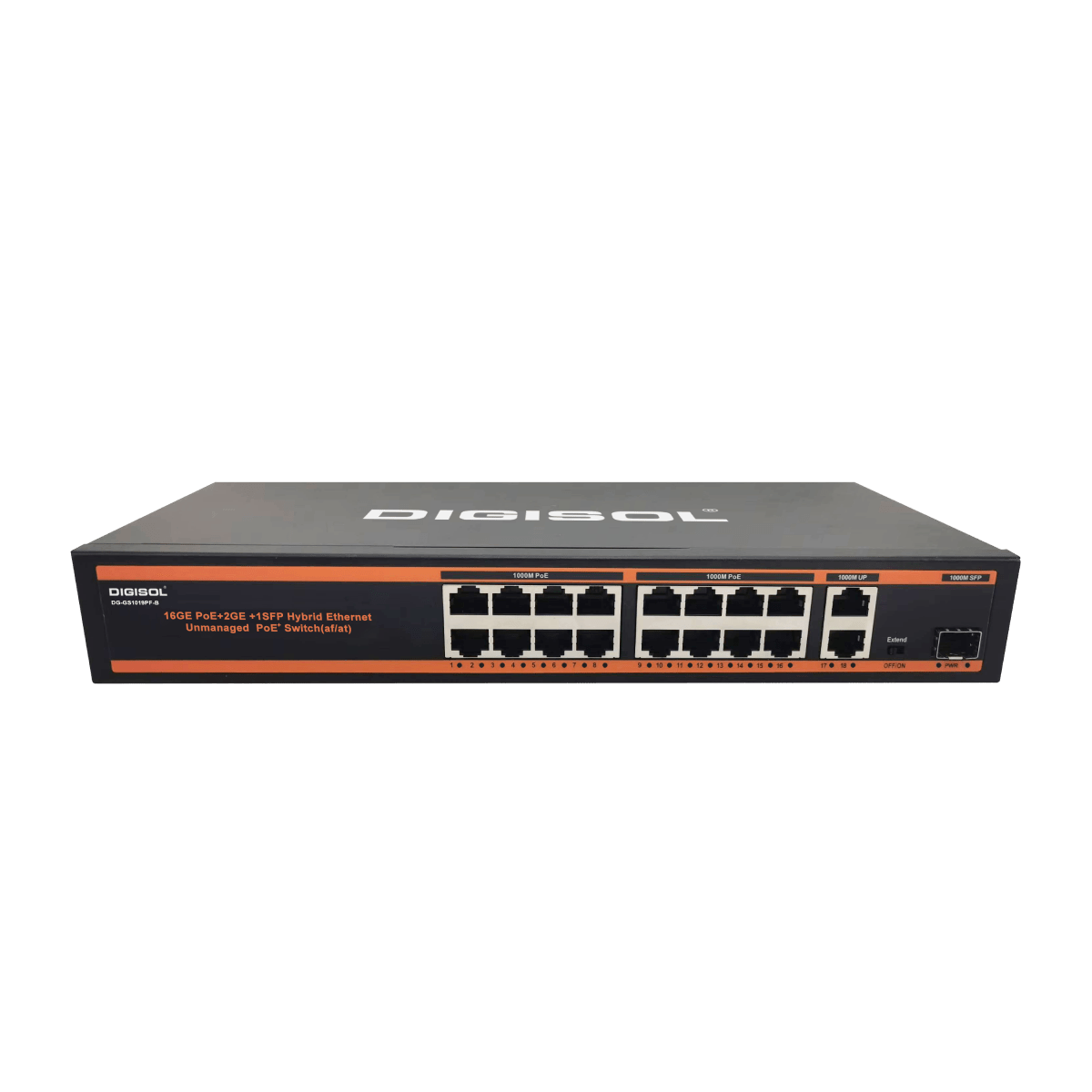

DIGISOL 16 PORT POE SWITCH GIGABIT DG-GS1019PF-B

The DIGISOL DG-GS1019PF-B 16-Port PoE Gigabit Unmanaged Switch provides a practical solution for expanding wired networks while supplying power to compatible PoE devices through Ethernet cables. Its 16 Gigabit PoE ports support 10/100/1000Mbps connectivity and comply with IEEE 802.3af/at standards.

The switch provides up to 30W per PoE port with a total power budget of 300W, allowing multiple compatible network devices to receive both data and power through a single Ethernet connection.

For network expansion, the DG-GS1019PF-B includes two 10/100/1000Mbps RJ45 uplink ports and one independent 1000Mbps SFP slot. It also supports VLAN functionality and network storm restraint to help maintain efficient network traffic management.

The switch uses a store-and-forward architecture and supports Auto MDI/MDIX with automatic negotiation for convenient installation. Its fanless, natural-cooling design helps provide quiet operation and makes the unit suitable for desktop or wall-mounted installations.

With standard transmission distances of up to 100 meters and an extended mode supporting up to 250 meters at 10Mbps, the DG-GS1019PF-B is suitable for various networking deployments, including offices, schools, hotels, industrial environments, IP surveillance systems, and other business networks.

Technical Specifications

Suitable Applications

• IP CCTV and surveillance networks
• Offices and business networks
• Schools and educational institutions
• Hotels and hospitality networks
• Industrial networks
• Network access points
• VoIP and IP telephony devices
• Small and medium-sized business infrastructure
• Network and server rooms
