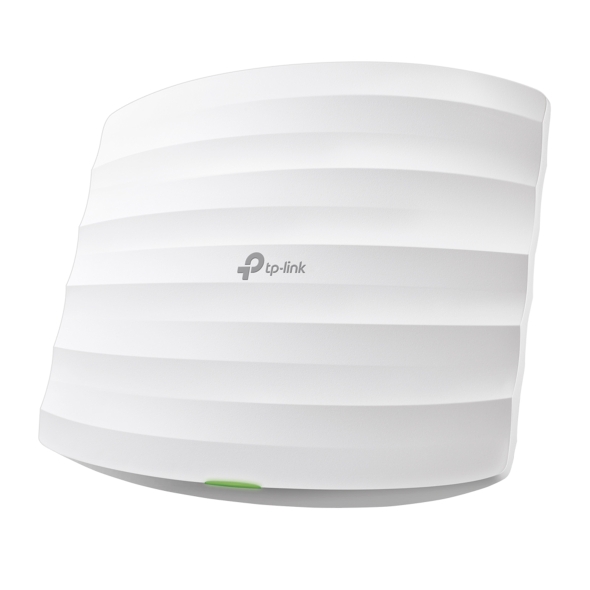

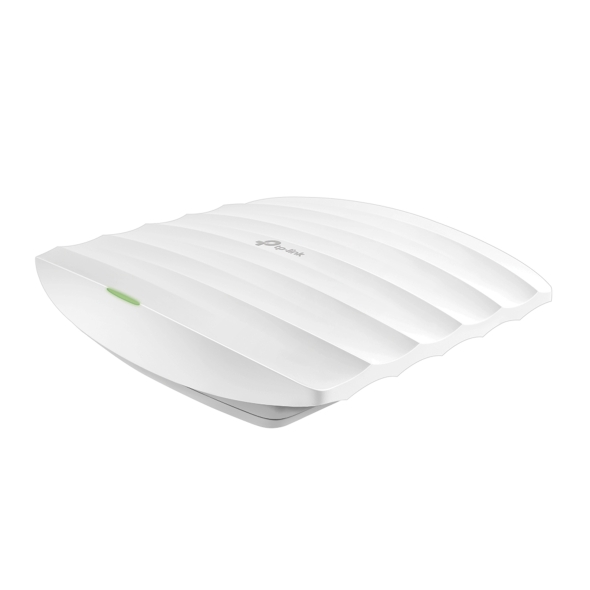

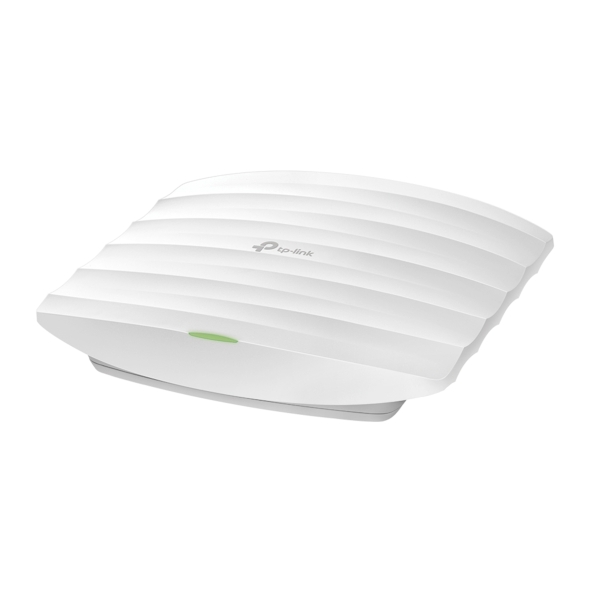

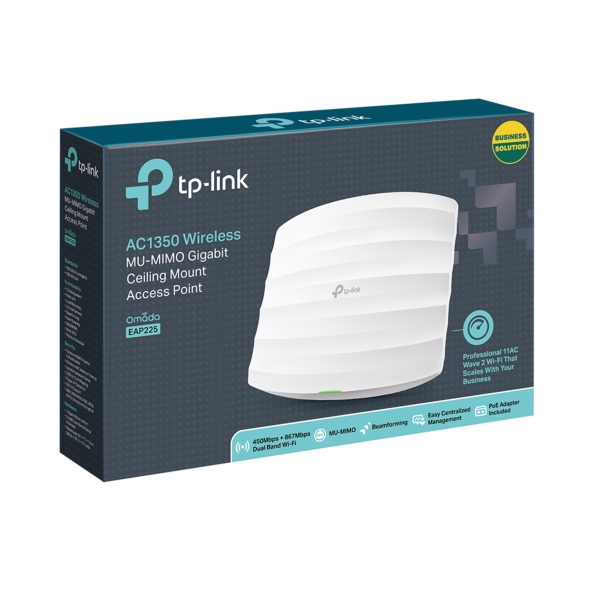

TP-Link CEILING MOUNT ACCESS POINT AC1350 Eap225

The TP-Link EAP225 is a professional dual-band wireless access point designed for business and commercial Wi-Fi deployments. Based on 802.11ac Wave 2 technology, it provides wireless speeds of up to 450Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, giving it an AC1350-class wireless capacity.

Its MU-MIMO technology allows the access point to communicate efficiently with multiple compatible devices, making it suitable for environments with multiple connected users. TP-Link specifies support for 220+ concurrent clients and coverage of up to 115 m² under stated test conditions.

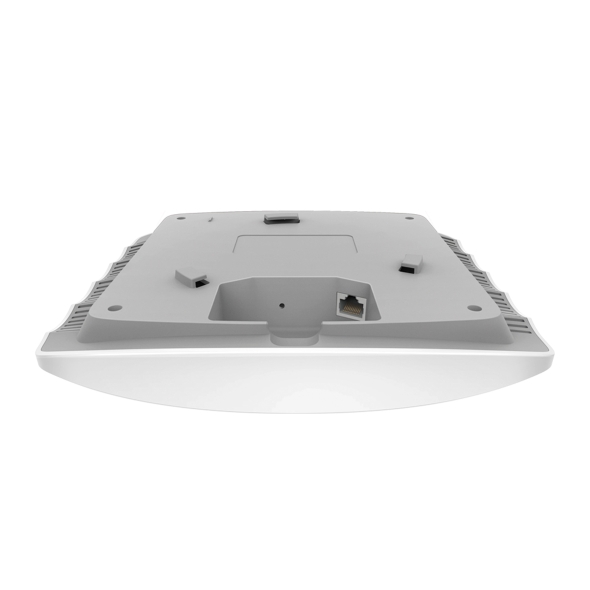

The EAP225 features one Gigabit Ethernet RJ45 port and supports both 802.3af/at PoE and 24V Passive PoE. This provides flexible installation options by allowing the access point to receive power through the Ethernet connection. A Passive PoE adapter is included.

The access point is integrated with the TP-Link Omada SDN platform, enabling centralized configuration, monitoring and management. It also supports features such as Seamless Roaming, Omada Mesh, Band Steering, Airtime Fairness, Beamforming, Load Balance and Rate Limit.

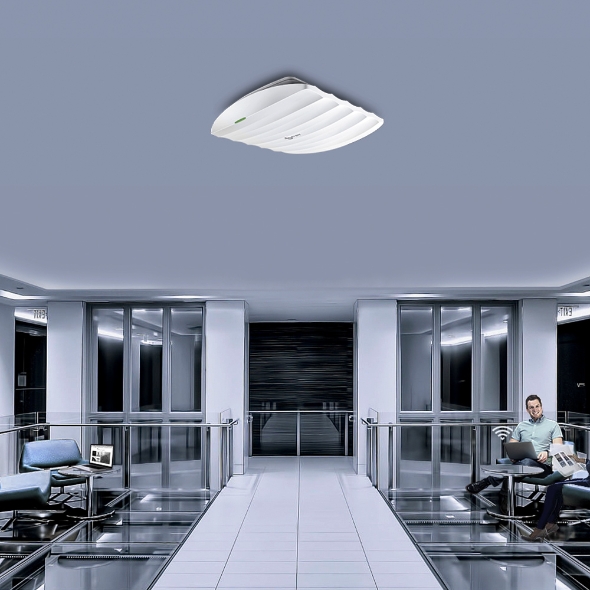

For guest and business networks, the EAP225 supports multiple SSIDs, SSID-to-VLAN mapping, captive portal authentication, wireless isolation, MAC filtering and access control. Its ceiling/wall mounting design makes it suitable for offices, hotels, educational institutions, restaurants and other commercial locations.

Specifications

*Actual wireless throughput and coverage can vary depending on environmental conditions, interference, network traffic and client-device limitations. *

Suitable Applications

• Office and corporate Wi-Fi networks
• Hotels and hospitality
• Schools and educational institutions
• Restaurants and commercial premises
• Guest Wi-Fi networks
• Multi-user wireless environments
• Enterprise wireless deployments
• Omada-managed network installations
