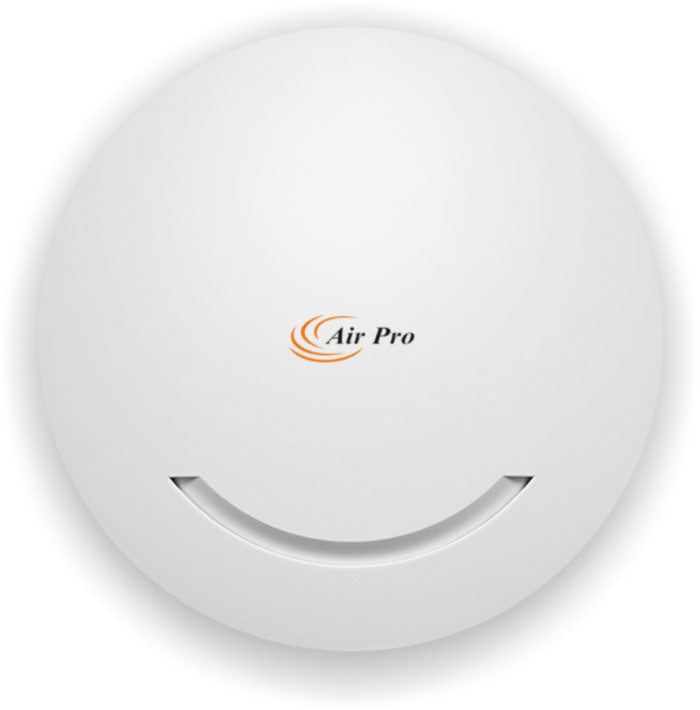

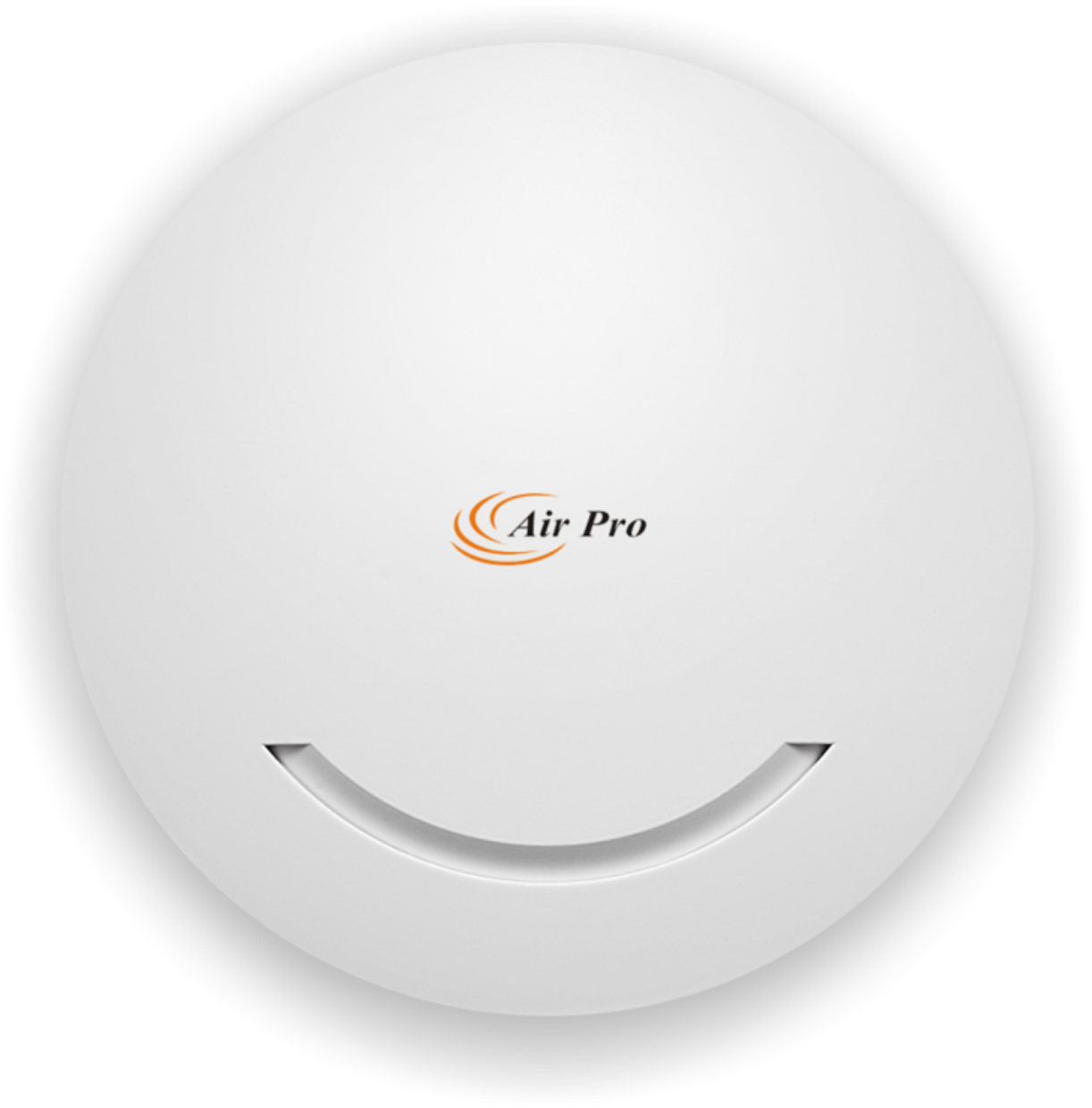

AIR PRO ACCES POINT DUAL BAND 1200MBPS AP-WAC2100

The AirPro AP-WAC2100-V1 is designed to provide reliable high-speed wireless connectivity in environments requiring centralized and flexible Wi-Fi deployment. It supports the IEEE 802.11ac/b/g/n standards and combines 2.4GHz and 5GHz wireless connectivity for a total maximum PHY rate of up to 1200Mbps.

The access point uses 2×2 MIMO technology with two spatial streams, supporting up to 300Mbps on 2.4GHz and 900Mbps on 5GHz. Its ceiling-mount design makes it suitable for distributing wireless coverage across offices, hotels, schools, restaurants and other commercial environments.

For wired connectivity, the AP includes a 10/100Mbps WAN PoE port and a 10/100Mbps LAN port. It supports IEEE 802.3af 48V Active PoE, allowing power and network connectivity to be delivered through the Ethernet infrastructure.

The AP-WAC2100-V1 supports both FIT AP and FAT AP operation modes. FIT AP mode allows centralized management through a compatible AirPro WLAN controller, while FAT AP mode provides standalone functions such as AP, repeater, gateway and WISP operation.

It also supports up to 8 SSIDs, SSID-based VLAN, Management VLAN, Band Steering and Wi-Fi Roaming. Built-in firewall and filtering functions, along with adjustable RF power and frequency analysis, provide additional flexibility for different wireless networking environments.

Specifications

Suitable Applications

• Office Wi-Fi networks
• Hotels and hospitality environments
• Schools and educational institutions
• Restaurants and commercial premises
• Enterprise wireless deployments
• Guest Wi-Fi networks
• Multi-user indoor wireless networks
• Centralized WLAN deployments
