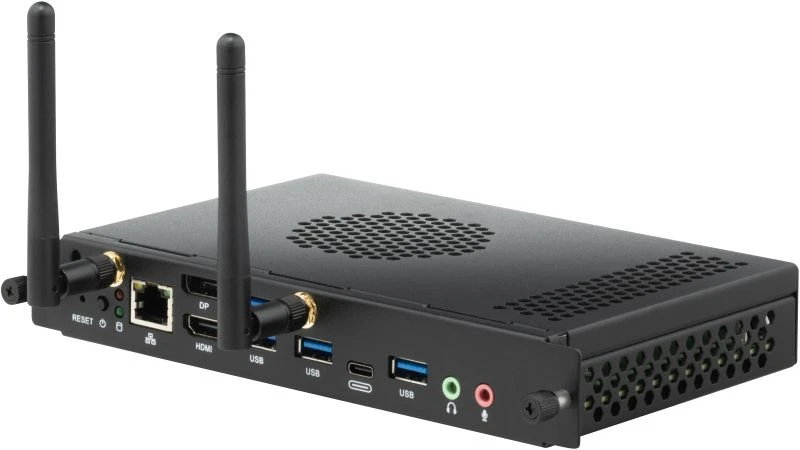

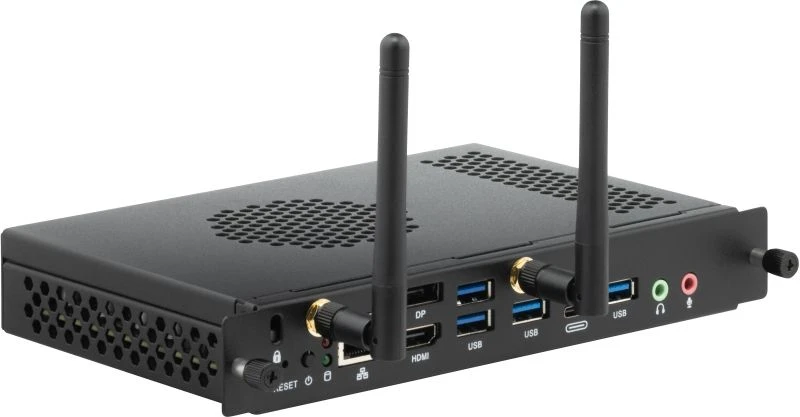

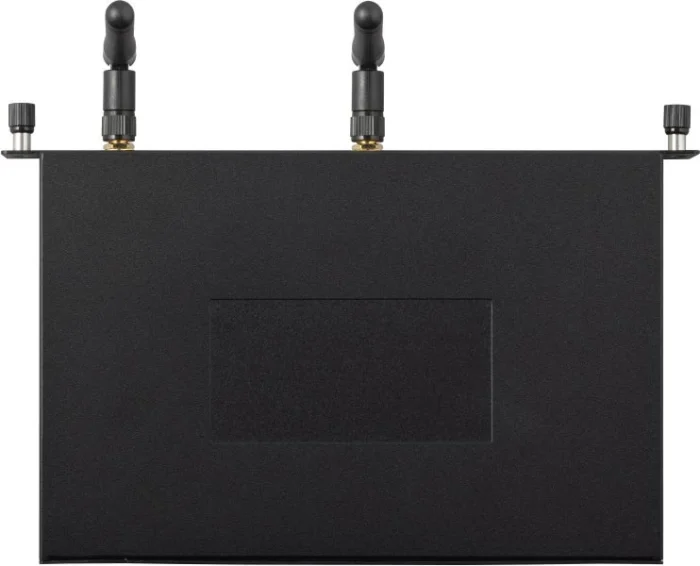

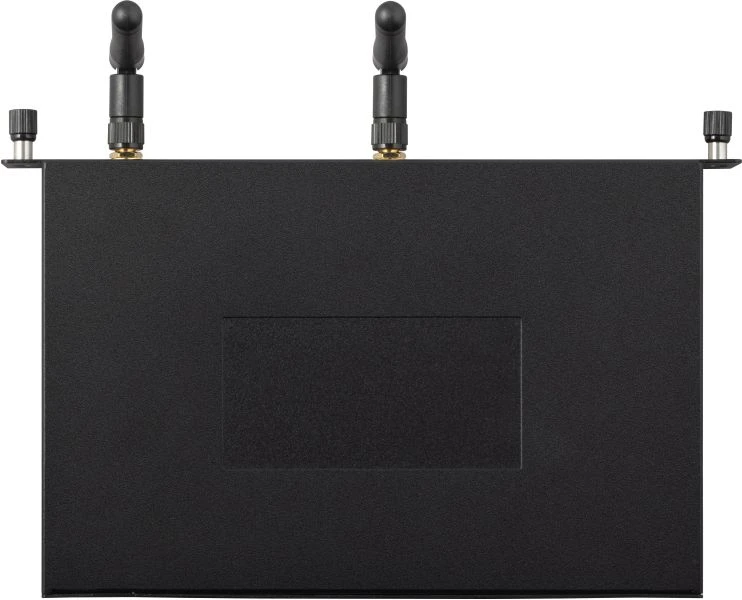

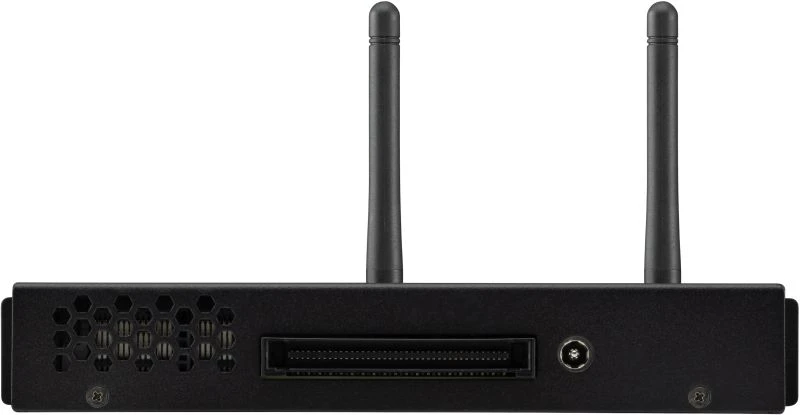

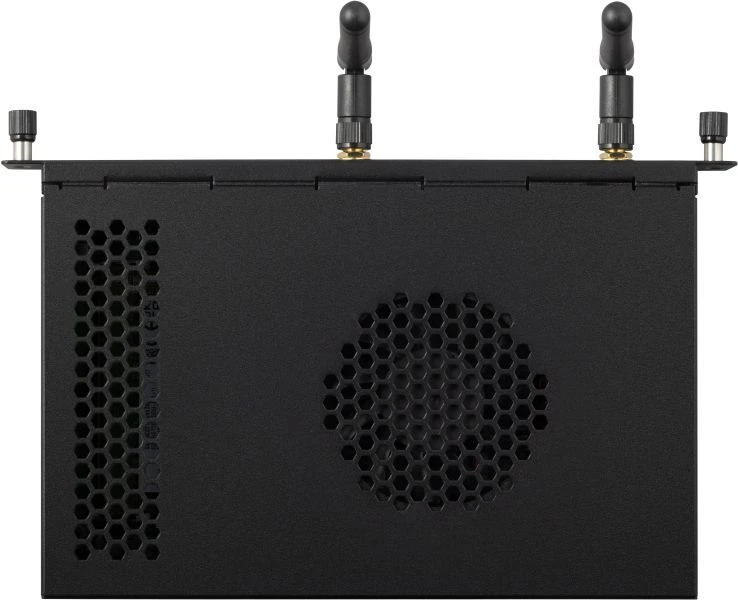

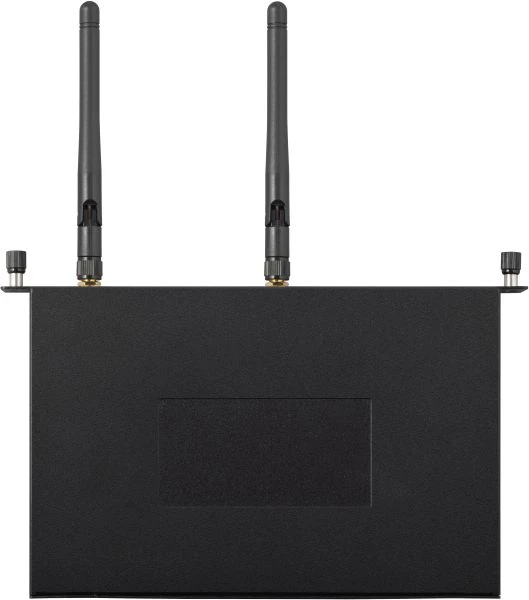

ViewSonic VPC35-W53-G1 Slot-in PC – Core i5, 16GB, 256GB SSD

The ViewSonic VPC35-W53-G1 is an OPS-compatible slot-in PC designed to provide a complete Windows computing experience through compatible ViewBoard interactive displays and presentation displays. It combines a 12th Gen Intel Core i5-1240P processor, 16GB DDR4 memory and a 256GB M.2 PCIe SSD for responsive performance in classrooms, meeting rooms, training environments and business collaboration spaces.

Running Windows 11 Pro, the VPC35-W53-G1 provides access to a familiar desktop computing environment while integrating directly with compatible ViewBoard displays. The Intel Core i5-1240P processor operates at 1.7GHz with Turbo Boost up to 4.4GHz, while integrated Intel Iris Xe Graphics supports high-resolution visual output. DisplayPort 1.4 supports resolutions up to 7680 × 4320 at 60Hz, while HDMI 2.0 supports up to 3840 × 2160 at 60Hz.

The system comes equipped with 16GB DDR4 SO-DIMM memory, expandable up to 32GB, and a 256GB M.2 2280 SSD. This combination provides suitable storage and memory capacity for productivity applications, presentations, interactive lessons and collaborative workflows.

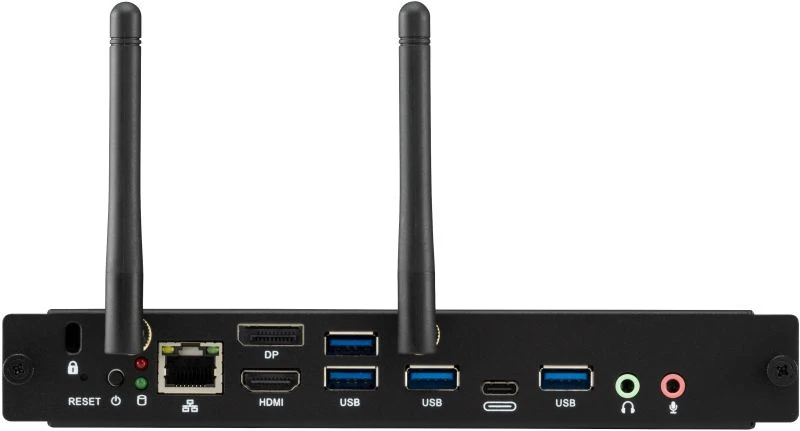

For wireless connectivity, the VPC35-W53-G1 includes Intel Wi-Fi 6 AX200 and Bluetooth 5.1. Wired networking is provided through a Gigabit RJ45 LAN port. Four USB 3.0 Type-A ports and one USB Type-C data port allow users to connect compatible peripherals and accessories.

Security and reliability features include TPM 2.0, optional Secure Boot through the BIOS and FinchGuard Watchdog software. FinchGuard is designed to detect and recover from certain system malfunctions, helping maintain system availability during lessons and presentations.

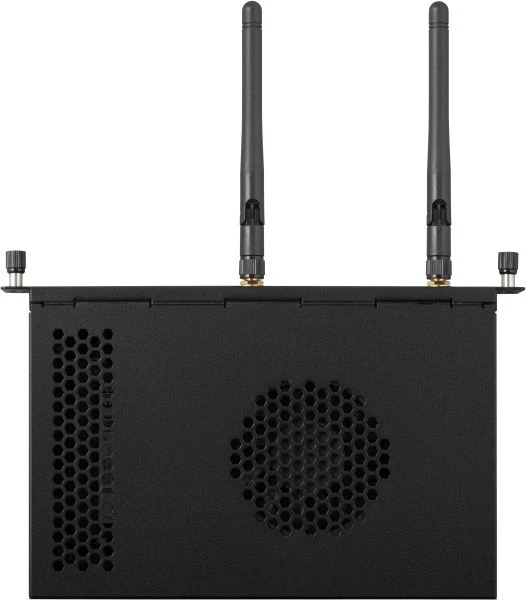

The compact module also incorporates thermal control and noise-reduction technology. ViewSonic specifies operating acoustics below 35dB, making the VPC35-W53-G1 suitable for environments where quiet operation is important. It also includes myViewBoard for Windows, Adobe Reader, BIOS Winflash and FinchGuard software.

Highlights / Key Features

• Intel Core i5-1240P 12th Gen processor
• Up to 4.4GHz Turbo Boost
• 16GB DDR4 RAM, expandable up to 32GB
• 256GB M.2 PCIe SSD
• Windows 11 Pro operating system
• Integrated Intel Iris Xe Graphics
• Supports up to 8K resolution through DisplayPort
• Intel Wi-Fi 6 and Bluetooth 5.1
• 4 × USB 3.0 and 1 × USB Type-C port
• HDMI 2.0 and DisplayPort 1.4 outputs
• Gigabit RJ45 LAN connectivity
• Integrated TPM 2.0 for enhanced security
• FinchGuard Watchdog for system stability
• Built-in myViewBoard for Windows software
• Thermal control with noise levels below 35dB
• Compact OPS slot-in design for compatible ViewBoard displays

Specifications

Specifications are based on ViewSonic’s official product information and datasheet.

What’s in the Box

• ViewSonic VPC35-W53-G1 OPS Slot-in PC
• Quick Start Guide
• Antennas × 2
