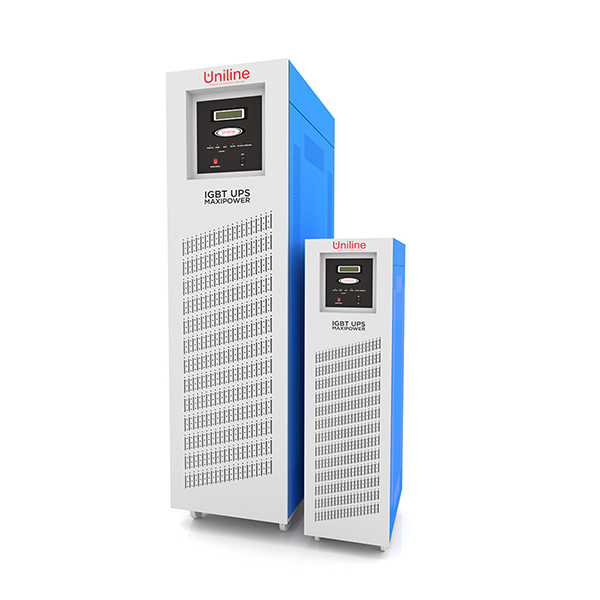

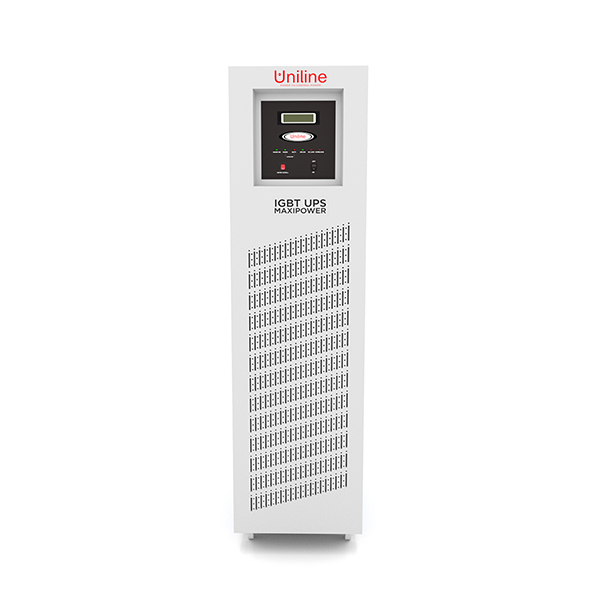

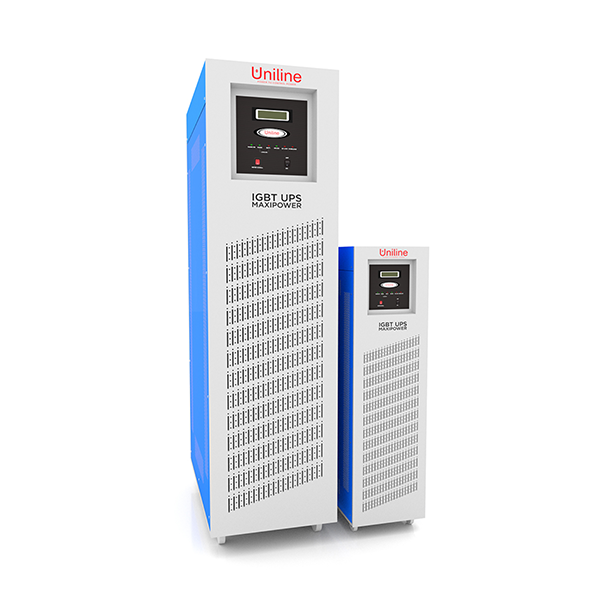

UNILINE UPS 3KVA ONLINE SYSTEMS
Original price was: ₹71,036.00.₹23,390.00Current price is: ₹23,390.00.
Uniline 3KVA 1:1 Phase Online UPS is designed to provide reliable and uninterrupted power protection for critical IT and electronic equipment. It offers 50–60 minutes of backup at full load and up to 100–120 minutes at 50% load, along with an in-built isolation transformer and flexible battery configuration.
1 in stock
The Uniline 3KVA 1:1 Phase Online UPS is a reliable power backup solution designed for applications where continuous and stable power is essential. With 3KVA capacity, single-phase input and single-phase output, it is suitable for servers, workstations, networking equipment and other critical electronic systems.
This online UPS configuration provides 50–60 minutes of backup at full load and approximately 100–120 minutes at 50% load, helping connected equipment remain operational during extended power interruptions.
The system features an in-built isolation transformer, which provides electrical isolation between the input and output and makes the UPS suitable for applications requiring enhanced power conditioning.
The listed configuration uses an 8 × 12V 26Ah SMF battery setup, along with a dedicated battery rack and interlink connector. It supports a 72–192V DC battery bus and offers a maximum charger capacity of 8A.
The Uniline 3KVA Online UPS is suitable for businesses, offices, server rooms and other environments where reliable power continuity is important. The listed package includes the UPS system, SMF batteries, battery rack and battery interlink connector.
Specifications
| Specification | Details |
|---|---|
| Brand | Uniline |
| Product Type | Online UPS |
| Capacity | 3KVA |
| Phase | 1:1 Phase |
| Input Phase | Single Phase |
| Output Phase | Single Phase |
| Full Load Backup | 50–60 Minutes |
| Backup at 50% Load | 100–120 Minutes |
| Battery DC Bus | 72–192V DC |
| Battery Capacity | 1872 VAH |
| Battery Type | SMF |
| Battery Configuration | 8 × 12V 26Ah |
| Maximum Charger Capacity | 8A |
| Isolation Transformer | In-Built |
| Battery Rack | Included |
| Battery Interlink Connector | Included |
| UPS Warranty | 12 Months |
| Battery Warranty | 24 Months |
| UPS Model | Maxipower-3000 |
The model number Maxipower-3000 and the included battery/rack/interlink configuration are specifically shown in the JDM Technologies bill of materials.
Package / Included Components
- Uniline Maxipower-3000 3KVA Online UPS × 1
- 12V 26Ah SMF Battery × 8
- Battery Rack for 8 Batteries × 1
- 3KVA UPS 96V DC Interlink Connector × 1
