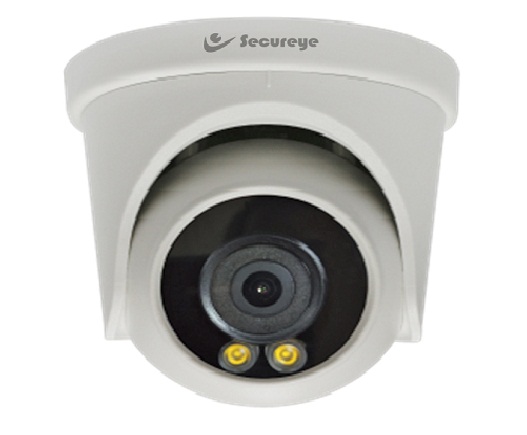

Secureye 2MP AHD Falcon Dome Camera with Color Vision S-A-D2

The Secureye S-A-D2 2MP AHD Falcon Dome Camera with Color Vision is designed for reliable analog CCTV surveillance where clear color video is required throughout the day and in low-light environments. The camera uses a 1/2.9-inch CMOS sensor and provides an effective resolution of 1920 × 1080, delivering Full HD surveillance footage.

The camera supports 4-in-1 video output, allowing it to operate in AHD, TVI, CVI or CVBS mode. This makes the S-A-D2 a flexible choice for CCTV installations using compatible DVR or XVR recorders. The camera also supports PAL and NTSC signal systems.

For image capture, the S-A-D2 uses a 3.6mm fixed lens with an approximately 78° horizontal viewing angle. Its full-time color design works with two warm-light LEDs, providing illumination of up to approximately 20 meters. Secureye specifies minimum illumination of 0.1 Lux in color mode and 0 Lux with white light, helping maintain color visibility in very low-light conditions.

The camera includes 3D Digital Noise Reduction, Auto White Balance and Auto Gain Control to help maintain usable image quality under varying lighting conditions. Its up-the-coaxial control support allows compatible CCTV systems to manage supported camera settings through the coaxial connection.

Built with a plastic cover and metal ball, the S-A-D2 has an IP66 protection rating, making it suitable for installations where protection from dust and water exposure is required. It can be used for homes, offices, shops, warehouses, institutions and other indoor or outdoor surveillance applications.

Specifications
