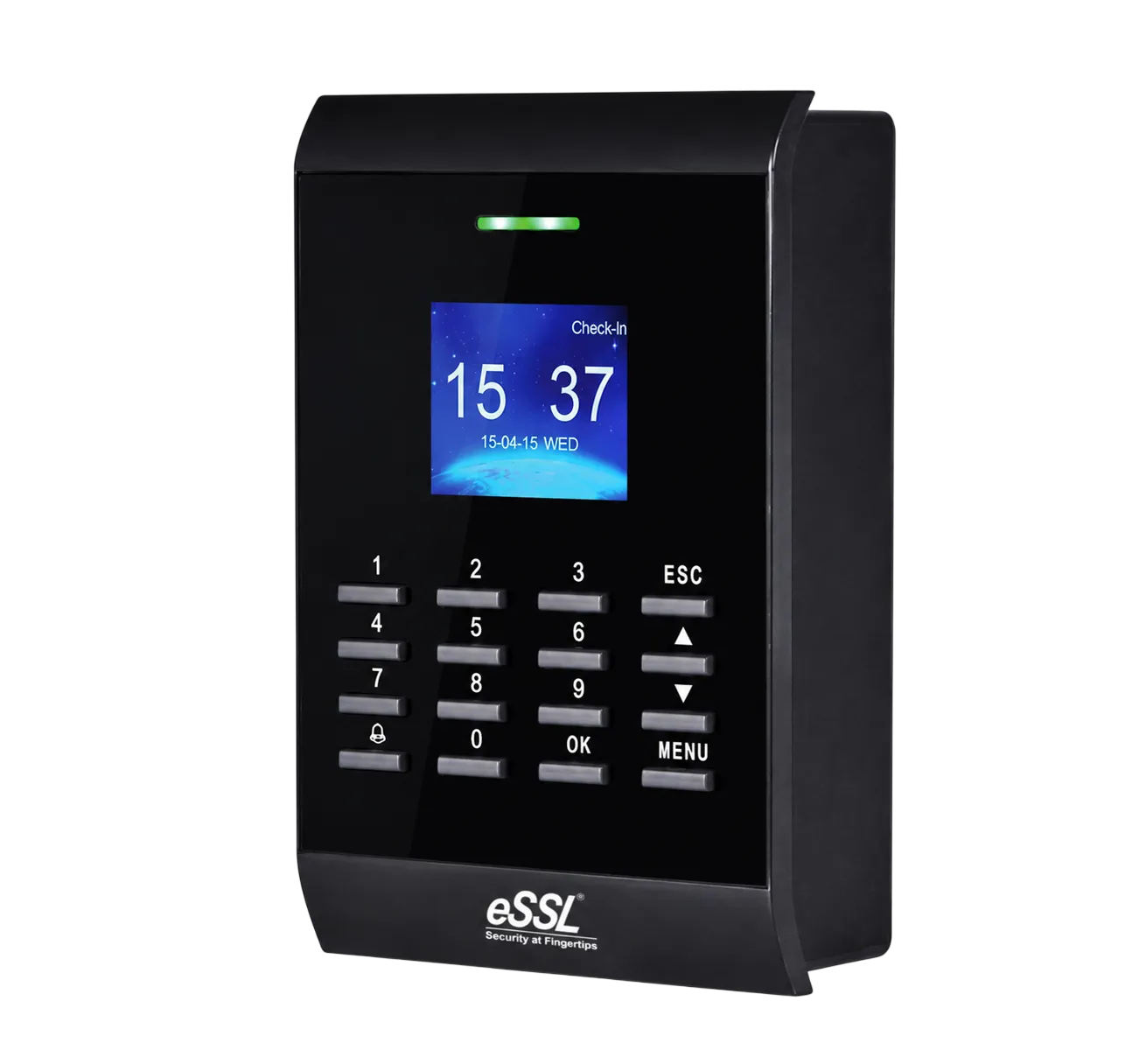

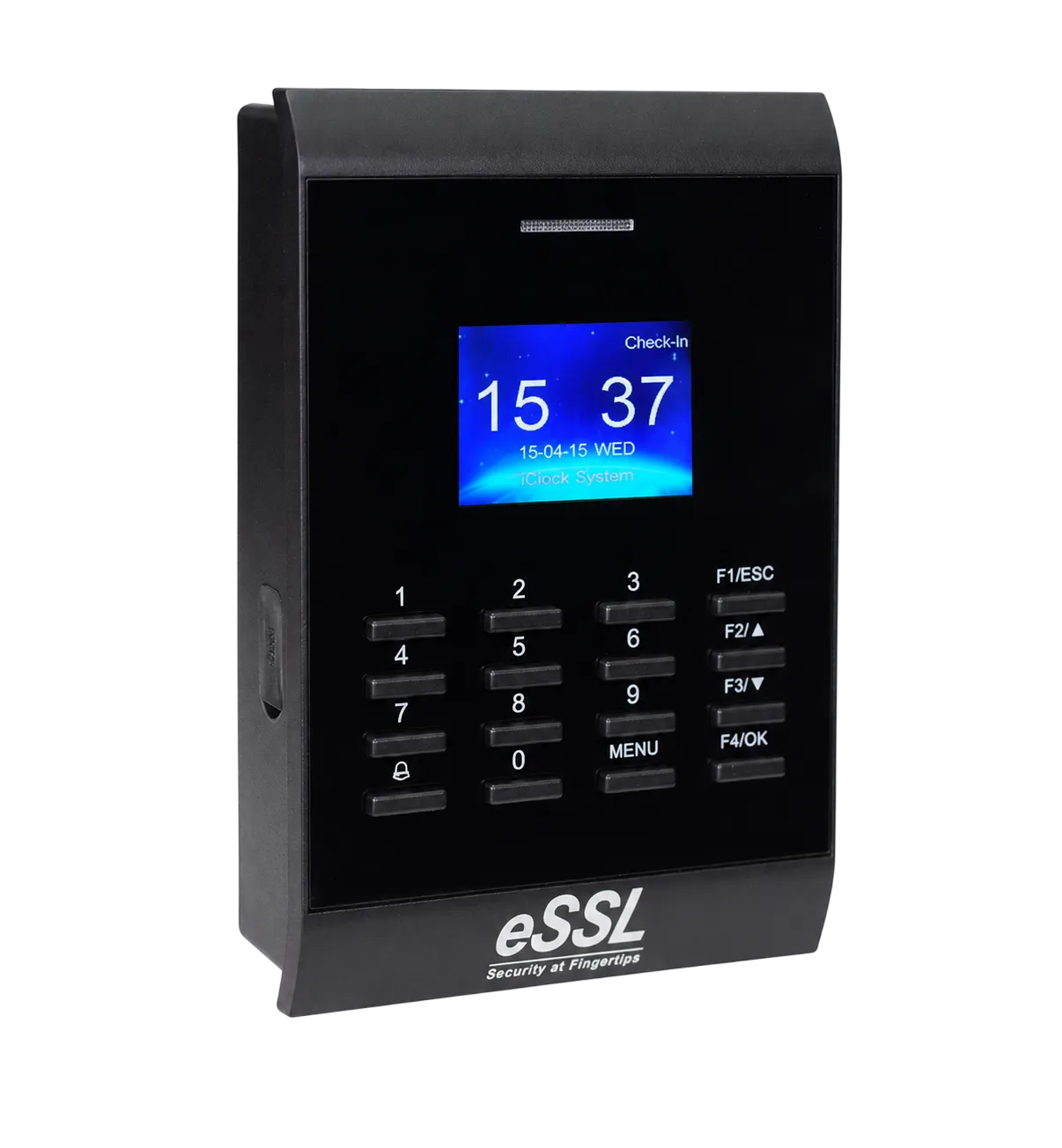

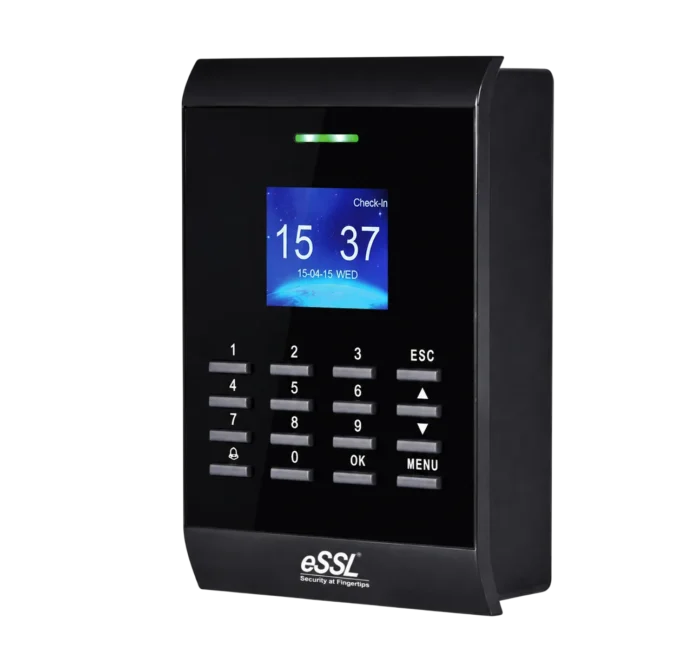

eSSL SC405 RFID Access Control & Attendance System
Original price was: ₹16,899.00.₹11,800.00Current price is: ₹11,800.00.
eSSL SC405 is an RFID-based access control system designed to manage authorised entry in offices, commercial buildings, educational institutions and industrial facilities. It supports up to 30,000 cards and stores up to 50,000 transaction logs. With TCP/IP, RS232, USB Host 2.0 and 26-bit Wiegand connectivity, it provides flexible integration with compatible access control equipment.
Out of stock
The eSSL SC405 RFID Access Control System offers a practical solution for managing card-based entry and recording access activity. Designed for business and institutional environments, it helps administrators control access permissions and maintain transaction logs without requiring fingerprint or facial recognition.
The device supports up to 30,000 cards and stores up to 50,000 transaction records. Its 32-bit microprocessor provides an identification speed of one second or less, while the 8–10 cm card-reading range supports convenient contactless authentication.
For network integration and data management, the SC405 provides TCP/IP, RS232 and USB Host 2.0 interfaces. Its 26-bit Wiegand input/output supports integration with compatible external readers and access control equipment.
The system supports configurable access schedules, including up to 50 time zones, 5 groups and 10 time combinations. Push-data functionality assists communication with compatible management systems. Optional MIFARE/HID proximity card support and anti-passback functionality can provide additional flexibility, depending on the supplied configuration.
The SC405 is compatible with supported accessories such as push buttons and no-touch exit devices. It is suitable for installations that require RFID card authentication, access scheduling and centralised access-record management.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | eSSL |
| Model | SC405 |
| Product Type | RFID Access Control System |
| Authentication Method | RFID proximity card |
| Card Capacity | 30,000 cards |
| Transaction Capacity | 50,000 logs |
| Processor | 32-bit microprocessor |
| Reading Range | 8–10 cm |
| Identification Speed | ≤ 1 second |
| Communication Interfaces | TCP/IP, RS232, USB Host 2.0 |
| Wiegand Interface | 26-bit input/output |
| Time Zones | 50 |
| Access Groups | 5 |
| Time Combinations | 10 |
| Push Data | Supported |
| Optional Card Support | MIFARE / HID proximity |
| Anti-Passback | Optional |
| Supported Accessories | JS500E, KR500E, push button and no-touch exit devices |
| Power Supply | 12V DC, 400mA |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20%–80% |
| Dimensions | 143 × 95.5 × 39.5 mm |
| Warranty | Confirm with supplier |
Recommended Applications
- Corporate offices and business premises
- Commercial buildings and business complexes
- Schools and educational institutions
- Factories and industrial facilities
- Controlled entry points
- Employee and visitor card-based access management
