D-Link 12U Wall Mount Network Rack NWR-12U-5545-GR

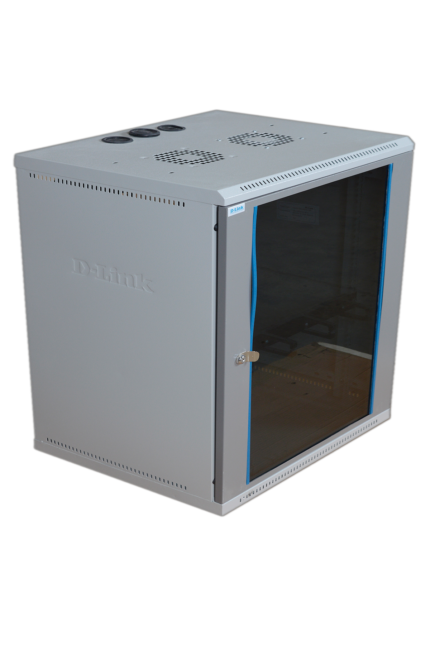

The D-Link NWR-12U-5545-GR is a professional 12U wall-mount network enclosure designed to house and organize compatible 19-inch rack-mounted equipment. With an external width of 550 mm and depth of 450 mm, it provides a space-efficient solution for networking, surveillance, telecom and IT infrastructure installations.

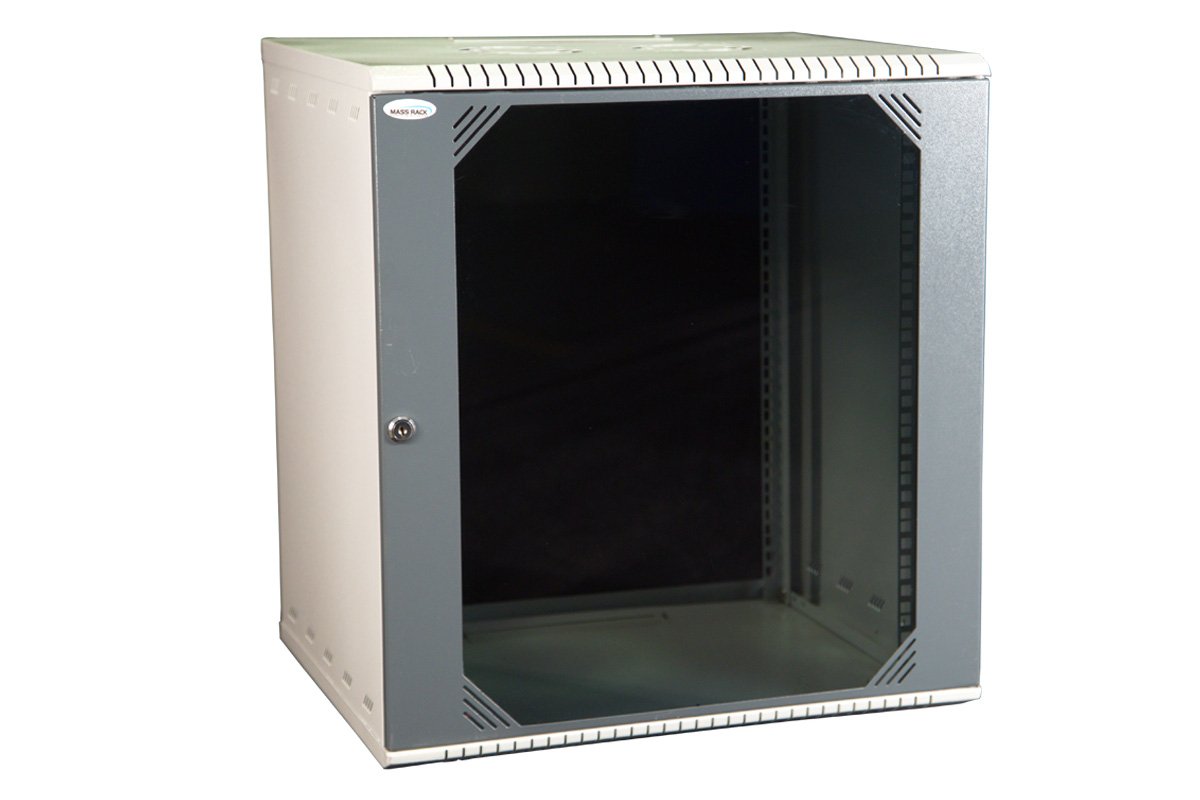

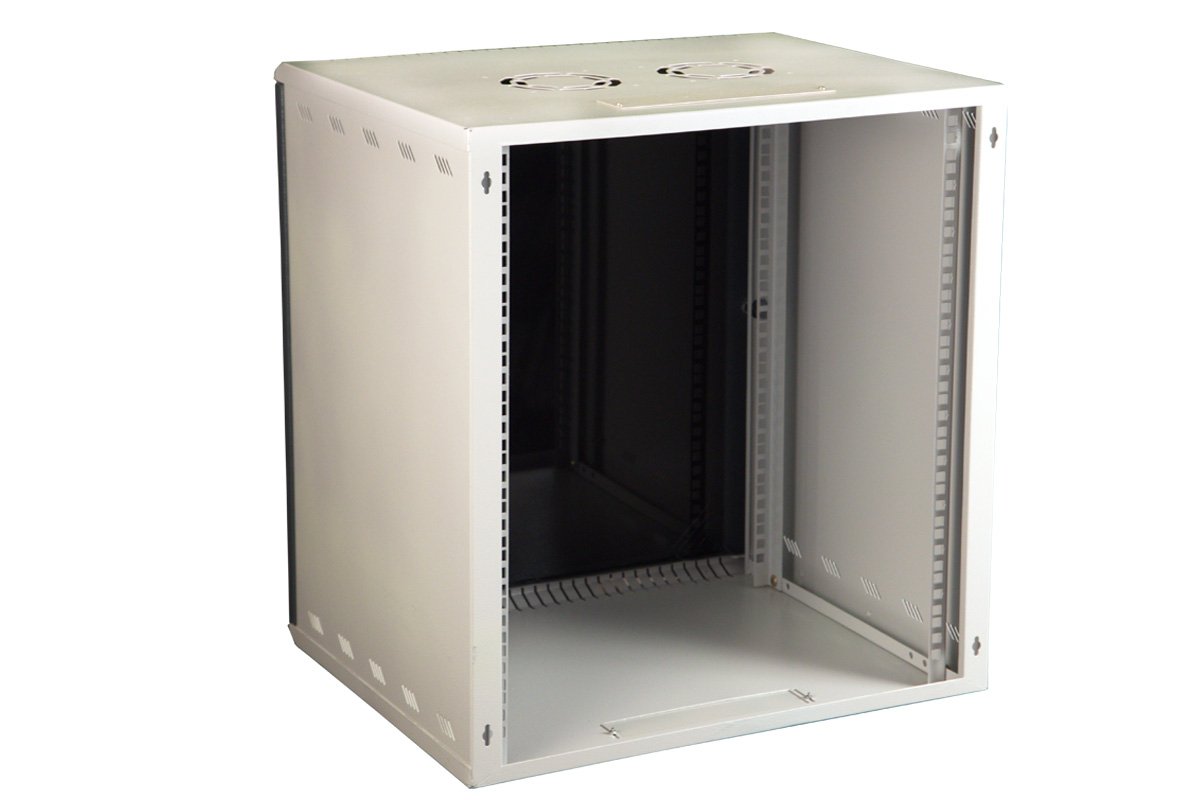

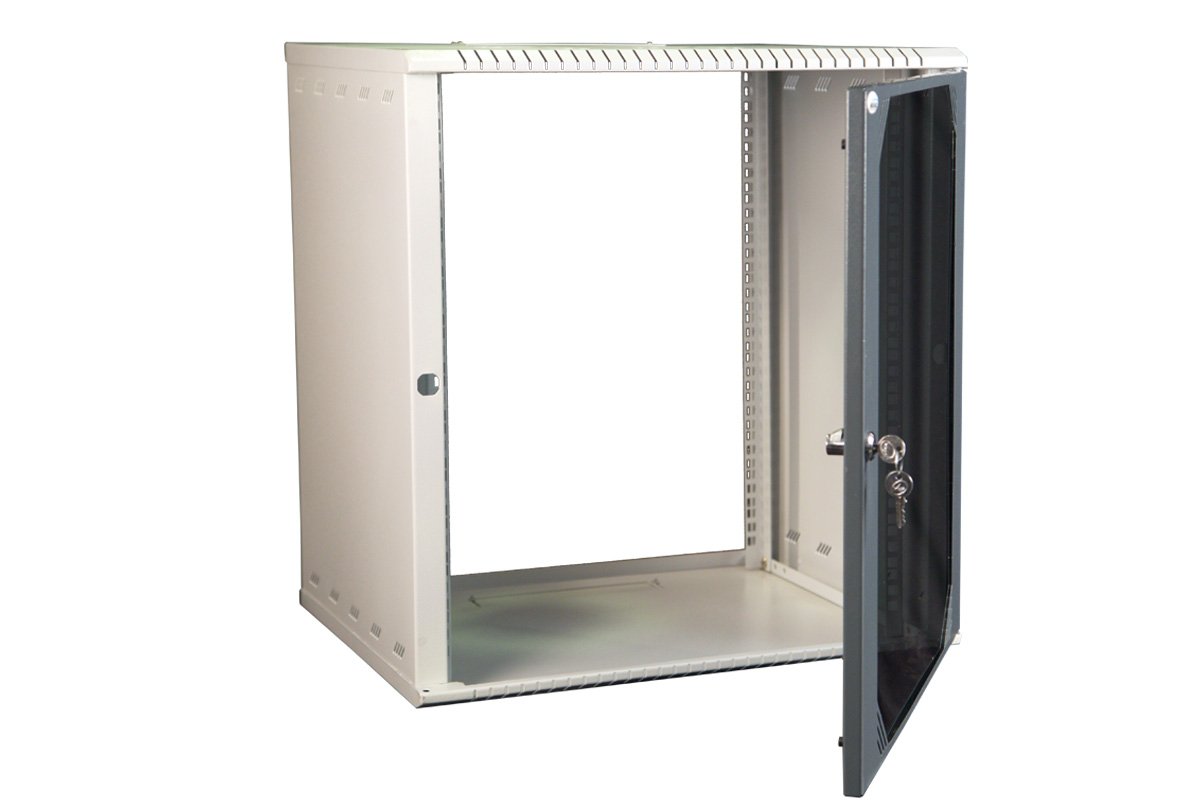

The rack features a tinted toughened-glass front door with lock and key, providing visibility of installed equipment while helping secure the enclosure. Two pairs of 19-inch mounting rails with U-marking allow compatible rack equipment to be positioned and installed conveniently.

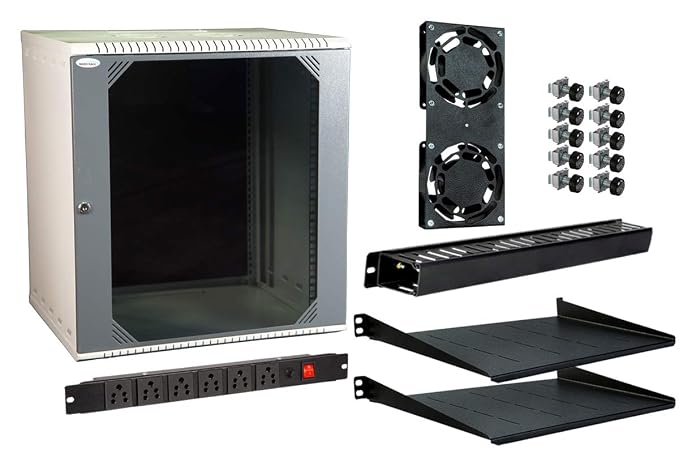

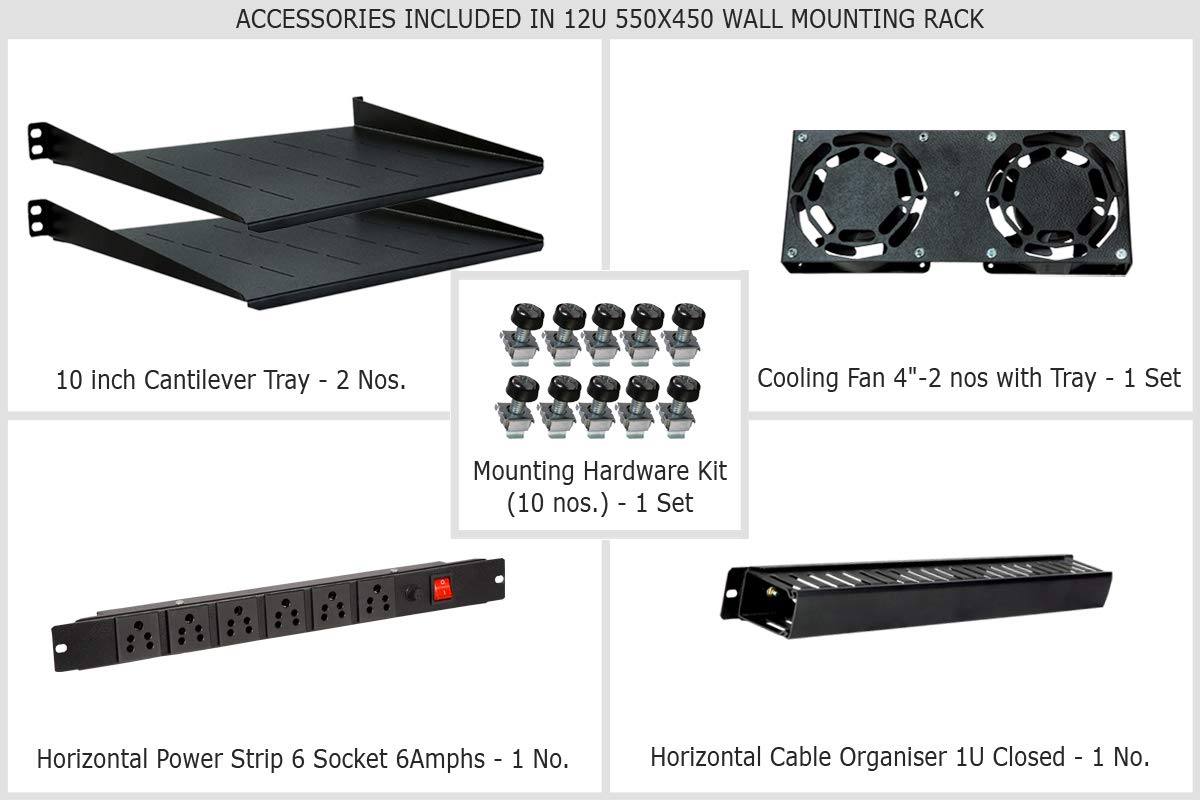

For airflow and cable management, the enclosure has vented top and bottom panels with field cable-entry and exit cut-outs. The standard configuration includes a 90 CFM roof-mounted fan operating at 230V AC for active cooling, along with a 1U cable manager for organized cable routing.

The NWR-12U-5545-GR also includes a 6-socket 5A Power Distribution Unit and supports a static load of up to 40 kg, making it suitable for structured network installations where multiple rack-mounted devices need to be housed in a compact wall-mounted enclosure.

Specifications

Suitable Applications

• Network switch and router installation
• Patch panels and structured cabling
• CCTV/NVR equipment
• Telecom equipment
• Server and network infrastructure
• Office IT networks
• Data and communication installations
• Security and surveillance systems
• Small server/network rooms
• Rack-based IT equipment management
