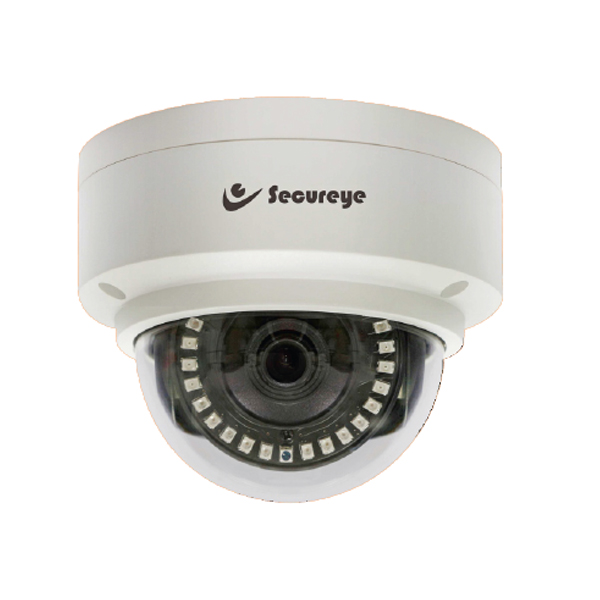

SECUREYE ,IP Vandal Proof Dome Camera: S-IP-D2-VP-A

Camera

• Sensor+DSP: SC2332 + Hi3516EV200
• Sensor: 1/3″ Proan CMOS Sensor
• Min. Illumination: 0.01lux(Color), 0lux(IR on)
• Lens: 3.6 mm@F2.0: horizontal FOV: 84°, vertical FOV:44°
• Lens Mount: M12
• IR: 9milX18pcs SMD LED
• IR Range: 30m
• Smart IR: Support
• Shutter Time: Auto/Manual, 1/3~1/10000s
• Day/Night: IR cut filter with auto switch
• Wide Dynamic Range: DWDR
• Digital noise reduction: 2D/3D DNR

Compression

• Video Compression: H.264+/H.265+/H264/H265
• H.264 Codec profile: Base/Main/High profile
• H.265 Codec profile: Main profile
• Video Bit Rate: 11 Kbps~10 Mbps


• Max. Image Resolution: 1920 × 1080
• Frame Rate: 50Hz: 25fps 1080P(1920 × 1080) | 25fps 960P(1280 × 960), 25fps 720P(1280 × 720) | 60Hz:30fps 1080P(1920 × 1080), 30fps 960P(1280 × 960), | 30fps 720P(1280 × 720)
• Sub Stream: 50Hz:25fps D1(704 × 576), 25fps CIF(352 × 288) | 60Hz:30fps D1(704 × 480),30fps CIF(352 × 240)
• Image Setting: Brightness/Contrast/Saturation/Hue/Sharpness
• BLC: Support
• HLC: Support
• ROI: Support
• Defog: Support

Network

• Protocols: TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour,IPV6(NO FTP)
• Event: Motion Detection, Video Shelter
• Smart Functions: Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Face Detection
• System compatibility: Onvif(Profile S), CGI
• Security: User authentication,IP address filtering,Video mask
• Mobile Surveillance: iPhone, iPad,Android ，CMS，WEB
• Communication interface: 1 RJ45 10M / 100M Ethernet Port

General

• SD Card: Supports Up to 128GB
• Audio: Yes
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing)
• Power Supply: DC12V ± 10%
• POE Supply: PoE (802.3af)
• Power Consumption: MAX 8.5W
• Weather Proof: IP66
• Vandalproof: IK10
• Dimensions: ￠100.6x 88.5(H) mm
• Weight: 540g
