Network Switches
Showing all 9 results
-
Network Switches

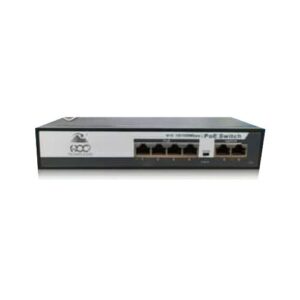

SECUREYE 8 GE + 2GE with built-in Power Supply POE Switch- S-8GE-2UG-NB
Description : 8 GE + 2GE with built-in Power Supply POE Switch
Model No : S-8GE-2UG-NB
Features
- 8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port
- Support IEEE802.3af/at
- Support restrain network storm, VLAN function
- All port supported by MDI/MDIX auto flip and self-negotiation
- Built-in power supply
- Maximum power of single PoE port: 30 W
- Maximum PoE power: 150W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,
- compact and quiet design, suitable for desktop or wall
- Support lightning protection 4000V
SKU: S-8GE-2UG-NB -
Network Switches
Secureye S-4FE-2UE-LD-VLAN 2+4 Port POE SWITCH
- Network Port: 4 10/100Mbps PoE RJ45 port ( Port 1- port4) 2 10/100Mbps RJ45 port uplink(Port5-port 6)
- Transfer Rate: 100Mbps full Duplex, 10 or 100Mbps Half Duplex
- Network protocol: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
- Performance: Bandwidth: 1.2Gbps (no block) Network delay(100 to 100M bps) maximum 20 ps (using 64 byte packet) Frame filtering and transmission rate:10M port maximum 14800pps, 100M port maximum 148,800pps
- LED indicator: Power, LINK/ACT, RESV, POE Indicator light
- POE Pin: 1/2+,3/6-
- Power : Max power for single port30W, Internal power adapter:60W
- Environment : Operating Temperature: 0°-40°C
- Operating Humidity : 10%- 90%, Non-condensing
- Safety regulations : CE/ROHS/FCC/CCC
SKU: S-4FE-2UE-LD-VLAN - Network Port: 4 10/100Mbps PoE RJ45 port ( Port 1- port4) 2 10/100Mbps RJ45 port uplink(Port5-port 6)
-
Network Switches
Secureye SE-MON-20H Computer LED Monitor
- Panel Size: 48.26CM (19)
- Dot Pitch: 0.2835mm
- Max. Resolution: 1440 x 900
- Brightness: 250cd/m2
- Back-light: LED
- Response Time: 5ms (TD)
- Viewing Angle: H:130°/ V:110°(CR=10)
- Power Consumption: 21W (Max.)
- Display Color: 16.7M
- Frequency: Hor. 31~80 KHz, Ver.: 56~75Hz
- Display Model: VGA, SVGA, SXGA, WXGA
- Input Signal: VGA OR HDMI
- Front Control: Power on/off with LED, OSD Menu, +/- Adjustment, Auto
- Operation Conditions: Temperature: 0°C~ 50°C/ Humidity: 20% – 60%
- Storage Conditions: Temperature: -20°C~ 60°C / Humidity: 20% – 80%
- Power Supply: AC 185~255V 1.0A, 50/60Hz
- Weight (Net/Gross): 3KG/3.50KG
- Packing Dimension: 483x103x408mm
SKU: SE-MON-20H -
Network Switches
TP-LINK ER605 ,Omada Gigabit VPN Router
HARDWARE FEATURES Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMPInterface • 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)Button Reset Button Power Supply External 12V/1A DC Adapter Flash 128 MB NAND DRAM 256 MB DDR LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) Max Power Consumption 7.94 W PERFORMANCE Concurrent Session 150,000 New Sessions /Second 2,600 NAT (Static IP) • Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 MbpsNAT(DHCP) • Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 MbpsNAT(PPPoE) • Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 MbpsNAT (L2TP) • Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 MbpsNAT (PPTP) • Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 ppsIPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 MbpsOpenVPN • 21.70 Mbps L2TP VPN Throughput • Unencrypted: 864.65 Mbps
• Encrypted: 47.11 MbpsPPTP VPN Throughput • Unencrypted: 703.20 Mbps
• Encrypted: 76.65 MbpsBASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode SKU: ER605 -
Network Switches
TP-LINK TL-SG1024D , 24-Port Gigabit Desktop/Rackmount Switch
HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 13.62W(220V/50Hz) Max Heat Dissipation 46.44BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB Green Technology Yes Transfer Method Store-and-Forward SKU: TL-SG1024D -
Network Switches
TP-Link TL-SG3428 | 24 Port Gigabit L2 Managed Switch, 4 SFP Slots
HARDWARE FEATURES Interface • 24× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console PortFan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption • V1: 19.22 W (110 V/60 Hz)
• V2: 19.9 W (220 V/50 Hz)Max Heat Dissipation • V1: 65.58 BTU/hr (110 V/60 Hz)
• V2: 67.73 BTU/h (220 V/50 Hz)SKU: TL-SG3428
